The "Control Core" of Lawn Irrigation: A Complete Guide to the Selection, Operation, and Maintenance of Manual Irrigation Valves
In a lawn irrigation system, sprinklers are responsible for precise water spraying, while irrigation valves serve as the "central nervous system" that controls water flow. Whether it is a simple sprinkler device for a small home yard or a complex irrigation network for commercial green spaces, the opening, closing, and adjustment of valves directly determine irrigation efficiency and water consumption. Among them, manual sprinkler valves have become an ideal choice for the maintenance of small and medium-sized lawns due to their intuitive operation and affordable cost. This article will systematically analyze the core functions of various manual irrigation valves, sort out key selection points and operation techniques, helping you easily master the "control switch" of the irrigation system.
I. Understanding Irrigation Valves: More Than Just a "Switch", But a System "Regulator"
A sprinkler valve is not just a simple device for turning water on and off. Its core function is to precisely control the start, stop, flow rate, and pressure of water supply according to the needs of the lawn, making it a key component for balancing irrigation effectiveness and water-saving goals. Among the many types, manual irrigation valves are characterized by "direct manual operation". They do not rely on electronic controllers and are widely used in scenarios such as home lawns and small courtyards due to their simple structure, low failure rate, and convenient maintenance.
Common manual irrigation valves can be mainly divided into two types, with distinct differences in their applicable scenarios and characteristics:
| Type | Core Structure | Applicable Scenarios | Outstanding Advantages |
| Ball-type Manual Irrigation Valve | Achieves on-off by rotating the internal spherical valve core | Small and medium-sized lawns, single-zone irrigation | Fast opening and closing, low water flow resistance |
| Gate-type Manual Irrigation Valve | Adjusts water flow by lifting the gate plate | Systems with series-connected sprinklers, scenarios requiring flow adjustment | Precise flow control, high pressure resistance |

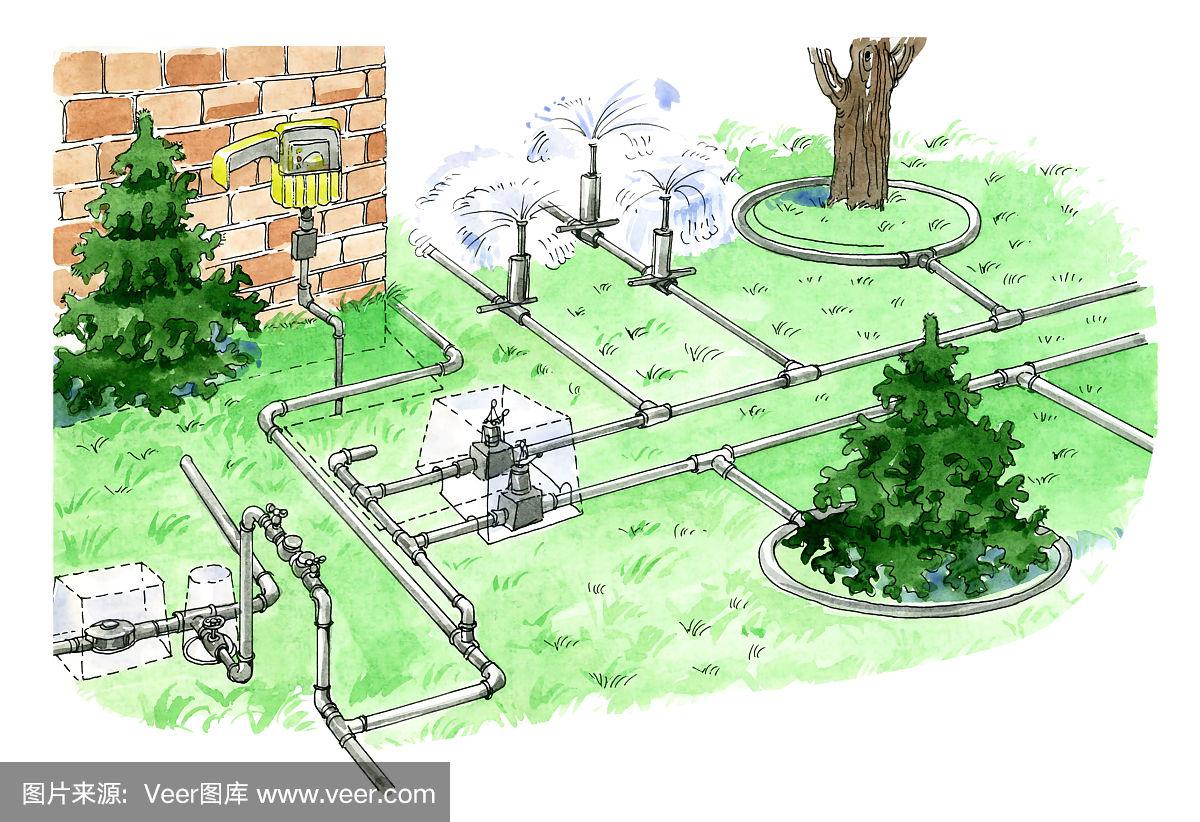

In the entire irrigation system, the sprinkler main shut-off valve is a special and crucial component. It is usually installed at the starting point where the water source connects to the irrigation system and is responsible for controlling the total water supply of the entire system. It serves both as a "safety switch" for daily maintenance and an "emergency stop valve" in case of sudden water leakage. Any manual irrigation system must be equipped with it.
II. Purchasing Guide: How to Choose a Manual Irrigation Valve That Matches Your Lawn Needs?
Choosing a suitable manual sprinkler valve requires comprehensive consideration of the irrigation system scale, water source pressure, and usage habits. Blind purchasing may lead to problems such as insufficient water flow and valve damage. The following three dimensions are the core of purchasing:
1. Matching System Scale: Valve Adaptation from "Single Point" to "Whole System"
Small lawns (within 100㎡, 1-2 sprinklers): Only one manual sprinkler valve is needed to directly connect the sprinklers and water pipes. A ball-type valve with a DN15 (1/2 inch) diameter can meet the needs, offering flexible operation and low cost.
Medium-sized lawns (100-300㎡, 3-5 sprinklers): It is recommended to adopt a "main valve + branch valve" structure. The sprinkler main shut-off valve controls the total water supply, and each sprinkler group is equipped with one manual irrigation valve, facilitating zoned irrigation and avoiding water waste. In this case, branch valves can be of DN20 (3/4 inch) diameter, and the main valve should be upgraded to DN25 (1 inch) to ensure water supply flow.
2. Paying Attention to Pressure and Material: Ensuring Durability and Compatibility
The pressure of domestic tap water is usually 2.5-4 kg/cm². When purchasing, it is necessary to confirm that the "rated working pressure" of the valve falls within this range. In terms of materials:
Plastic valves (such as PVC): Suitable for household systems with low pressure and are affordable.
Brass valves: Have stronger corrosion resistance and better sealing performance, making them suitable for scenarios with hard water quality or long-term use. Although they cost slightly more, they have a longer service life.
Special note: If there are mobile devices such as manual sprinklers in the system, the valve must have good sealing performance to avoid water leakage caused by frequent plugging and unplugging of water pipes.
3. Prioritizing "Easy Operation + Easy Maintenance" Design
High-quality manual irrigation valves should have clear operation marks (such as "ON/OFF" scales) and the handle should rotate smoothly without jamming. Some products are equipped with detachable valve cores. If the opening and closing function fails due to sediment blockage, the valve core can be directly disassembled and cleaned without replacing the entire valve. In addition, it is recommended to choose a sprinkler main shut-off valve with a "locking function" to prevent water waste caused by misoperation.
III. Operation and Maintenance: Unlocking the Correct Use of Manual Irrigation Valves
1. Basic Operation: Mastering the Core Logic of "ON/OFF"
Manual on-off of sprinkler valves is the most basic operation, and the operation methods vary slightly among different types of valves:
Ball-type valve: When the handle is parallel to the pipeline, it is in the "ON (open)" state; when perpendicular, it is in the "OFF (closed)" state. It needs to be rotated 90 degrees for switching, which is easy to operate.
Gate-type valve: It is closed by rotating the handle clockwise and opened by rotating it counterclockwise. It requires more rotation cycles but allows for more precise flow adjustment. The opening degree can be judged by the height of the handle.
During daily irrigation, it is recommended to first open the sprinkler main shut-off valve, then open each zoned manual sprinkler valve in sequence to avoid damage to the sprinklers caused by instantaneous water pressure impact. After irrigation, close the valves in the order of "branch valves first, then main valve" to ensure the residual water in the system is discharged slowly.
2. Daily Maintenance: 3 Key Tips to Extend Valve Life
Regularly check sealing performance: Observe whether there are water leakage traces at the valve interface every month. If water seepage is found, tighten the interface nut or replace the sealing gasket to avoid soil compaction or valve rust caused by long-term water leakage.
Clean the valve core and filter: Disassemble the valve core (or filter) every quarter and rinse off sediment and impurities with clean water. Especially in areas with poor water quality, the cleaning frequency should be increased to prevent blockage that causes failure in opening and closing.
Anti-freezing protection in winter: In northern regions, before the arrival of winter, close the sprinkler main shut-off valve and open all manual sprinkler valves to drain the water in the pipelines and valves, avoiding damage to the valve core or valve body due to freezing in low temperatures.
3. Troubleshooting Common Problems: Quickly Solving Valve "Minor Faults"
Problem 1: The valve handle is difficult to rotate and cannot be opened or closed normally.
Solution: It is most likely that the valve core is blocked by sediment. Disassemble the valve and clean the valve core. If it is a metal valve, internal rust may be the cause, and a small amount of lubricating oil (such as petroleum jelly) can be applied for lubrication.
Problem 2: The valve still drips after being closed.
Solution: Check if the sealing gasket is aging and replace it with a new one. If it is a gate-type valve, the gate plate may be worn, and the valve core assembly needs to be replaced.
IV. Summary: Manual Irrigation Valves Make Lawn Irrigation More Controllable
Irrigation valves are the "heart valves" of a lawn irrigation system, and manual sprinkler valves, with their simple design and reliable performance, have become a "cost-effective choice" for home lawn maintenance. Every detail, from matching the system scale and material during purchasing, to following the "main valve first, branch valves later" logic during operation, and to cleaning and anti-freezing in daily maintenance, determines the efficiency and service life of the irrigation system.
Remember, the sprinkler main shut-off valve is the "safety bottom line" of the system, and it is necessary to ensure its flexible opening and closing in daily use. The precise operation of each manual irrigation valve is a dual protection for the health of the lawn and water resources. By mastering this knowledge, you can make the irrigation valve truly play its role as the "control core", keeping your lawn green and vibrant with reasonable water supply.
