In the field of modern agriculture and horticulture, the Micro Sprinkler Irrigation System has become the mainstream choice of irrigation technology due to its efficient water-saving characteristics. The system disperses water into fine droplets through micro sprinklers to achieve precise irrigation, which not only greatly reduces water consumption but also optimizes the crop growth environment according to the needs of different scenarios. From orchards to greenhouses, from home gardens to large farms, the diversity and adaptability of micro sprinkler irrigation technology are reshaping the global irrigation model through various uniquely functional micro sprinklers and perfect system support.
As the core component of the micro sprinkler irrigation system, micro sprinklers have technical subdivisions to meet the professional needs of different scenarios. The Pressure-compensated Micro Sprinkler, with a built-in compensator, can automatically adjust the flow rate in a low-pressure environment of 0.1-0.3MPa. Even in areas with large terrain undulations such as mountains and hills, it can ensure that sprinklers in different positions work with uniform spraying volume, completely solving the problem of uneven irrigation caused by water pressure fluctuations in traditional irrigation.
The Rotary Micro Sprinkler drives the built-in rotating components through water flow to achieve 360° full-range uniform spraying, with a coverage radius of 5-8 meters, which is particularly suitable for large-area planting areas such as orchards and tea gardens. Taking a citrus orchard as an example, the rotary micro sprinkler can evenly distribute water around the roots of fruit trees to avoid direct scouring of the leaves. At the same time, with plastic film coverage, the water evaporation rate is reduced by more than 40%.
The Adjustable Micro Sprinkler gives users flexible control. Through a knob or buckle structure, the spraying angle (30°-180°), flow rate (10-60L/h), and coverage range can be freely adjusted. This "tailor-made" design makes it highly popular in home gardens (Micro Sprinklers for Garden). Users can adjust the spraying mode at any time according to the height of flowers and plants and the layout of potted plants, which not only prevents seedlings from being damaged by strong water flow but also ensures that tall shrubs receive sufficient water.
The Low-flow Micro Sprinkler focuses on water-saving characteristics, with a flow rate usually controlled at 5-20L/h. When used with a drip irrigation belt, the daily water consumption per mu of land can be as low as 2-3 tons, saving more than 70% of water compared with traditional surface irrigation. This sprinkler is particularly suitable for irrigating cash crops in arid areas. For example, in the cotton fields in Xinjiang, the combination of low-flow micro sprinkling and integrated water and fertilizer technology not only saves water but also increases the fertilizer utilization rate by 30%.

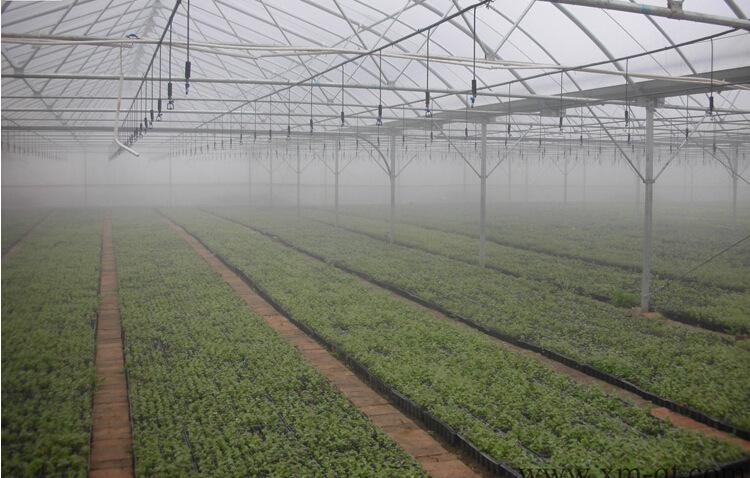

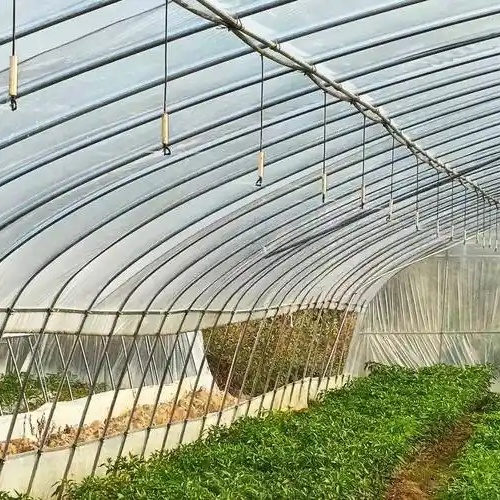

The greenhouse environment has extremely high requirements for the precision of irrigation. Therefore, the Greenhouse Micro Sprinkler adopts a refractive design. After the water flow is dispersed by the refractive cone, it forms fine mist-like droplets, which can not only irrigate seedlings evenly but also cool down through evaporation to control the greenhouse temperature within a suitable range. In the flower seedling greenhouse, this kind of sprinkler, combined with an intelligent temperature control system, can increase the seedling survival rate to more than 95%, and there is no risk of leaf burning.
As the core component, the material and aperture design of the Micro Sprinkler Nozzle directly affect the irrigation effect. The common nozzle materials on the market include engineering plastics, stainless steel, and ceramics. Among them, ceramic nozzles have a service life of more than 5 years in areas with high hardness water quality due to their wear-resistant and corrosion-resistant characteristics. The gradient design of the aperture from 0.5mm to 2mm is suitable for different flow requirements. For example, a 0.8mm aperture nozzle is commonly used in seedling beds to ensure that the water droplet diameter is less than 1mm to avoid impacting seedlings.
The installation of the micro sprinkler irrigation system needs to follow a scientific process: first, design the pipe network layout according to the shape of the plot and the distribution of crops. The main pipeline is recommended to use PE material (aging-resistant and UV-resistant), and the branch pipeline uses PVC pipe; secondly, install a filter (such as a disc type or centrifugal type), and the filtration accuracy needs to reach more than 120 meshes to prevent impurities in the water from blocking the nozzle; finally, install the sprinkler according to the design spacing (usually 1-3 meters), and pay attention to leaving enough space for the rotary sprinkler to avoid collision. Take a home garden as an example. The installation cost of a 100㎡ micro sprinkler irrigation system is about 800-1500 yuan, which can be manually controlled or used with a timer, and is easy to operate.
Regular flushing of the pipe network is the key to the maintenance of the micro sprinkler irrigation system. It is recommended to flush the pipeline in the reverse direction with high-pressure water every quarter to remove the sediment and algae deposited on the inner wall; replace the filter element once a year and check whether the sprinkler seal is aging. When uneven spraying is found, the nozzle should be disassembled and checked in time. If it is blocked by sediment, it can be soaked in white vinegar for 10 minutes and then rinsed with clean water. If the seal is damaged, the sprinkler needs to be replaced. In northern regions, the water in the pipeline needs to be emptied before winter to prevent freezing and cracking, which can extend the service life of the system by 2-3 years.
From the perspective of the technical origin, the embryonic form of the micro sprinkler irrigation system can be traced back to the drip irrigation technology of Israel in the 1960s, and the invention of the micro sprinkler is a supplement and expansion of the drip irrigation technology. Its core breakthrough lies in realizing the transformation from "point irrigation" to "surface irrigation". In recent years, with the integration of Internet of Things technology, the intelligent micro sprinkler irrigation system has been able to start and stop automatically through soil moisture sensors. Combined with cloud data analysis, the irrigation accuracy has been improved to a new height.
In terms of market popularization, home building materials supermarkets such as Home Depot have taken the micro spray irrigation kit as a standard category. The price of the basic set is about 50-100 US dollars, including 20 meters of pipeline, 10 sprinklers, and accessories, which is suitable for home users for DIY installation. In the agricultural field, large farms prefer customized solutions. For example, the intelligent micro sprinkler irrigation system used in vineyards in California, USA, through GPS positioning and UAV inspection, realizes precise irrigation of each grape tree, saving 45% of water compared with the traditional method and increasing the sugar content of grapes by 2-3 degrees.
From the portable micro sprinkler devices that have emerged in entrepreneurship programs such as "Shark Tank" to the large-scale intelligent systems serving modern agriculture, micro sprinkler irrigation technology is penetrating into every corner of the world in various forms. Whether it is a Mini Sprinkler that cares for flowers and plants in a home garden or professional equipment that nourishes fruit trees in an orchard, its essence is to achieve the ultimate utilization of water resources through technological innovation. Today, with the increasing shortage of global water resources, the micro sprinkler irrigation system is not only an irrigation tool but also a vivid practice of the concept of sustainable development in the agricultural field. Its technological iteration and application expansion will continue to provide strong support for mankind to cope with resource challenges.
