How to Tell If a Sprinkler Valve Solenoid Is Bad and Related Maintenance

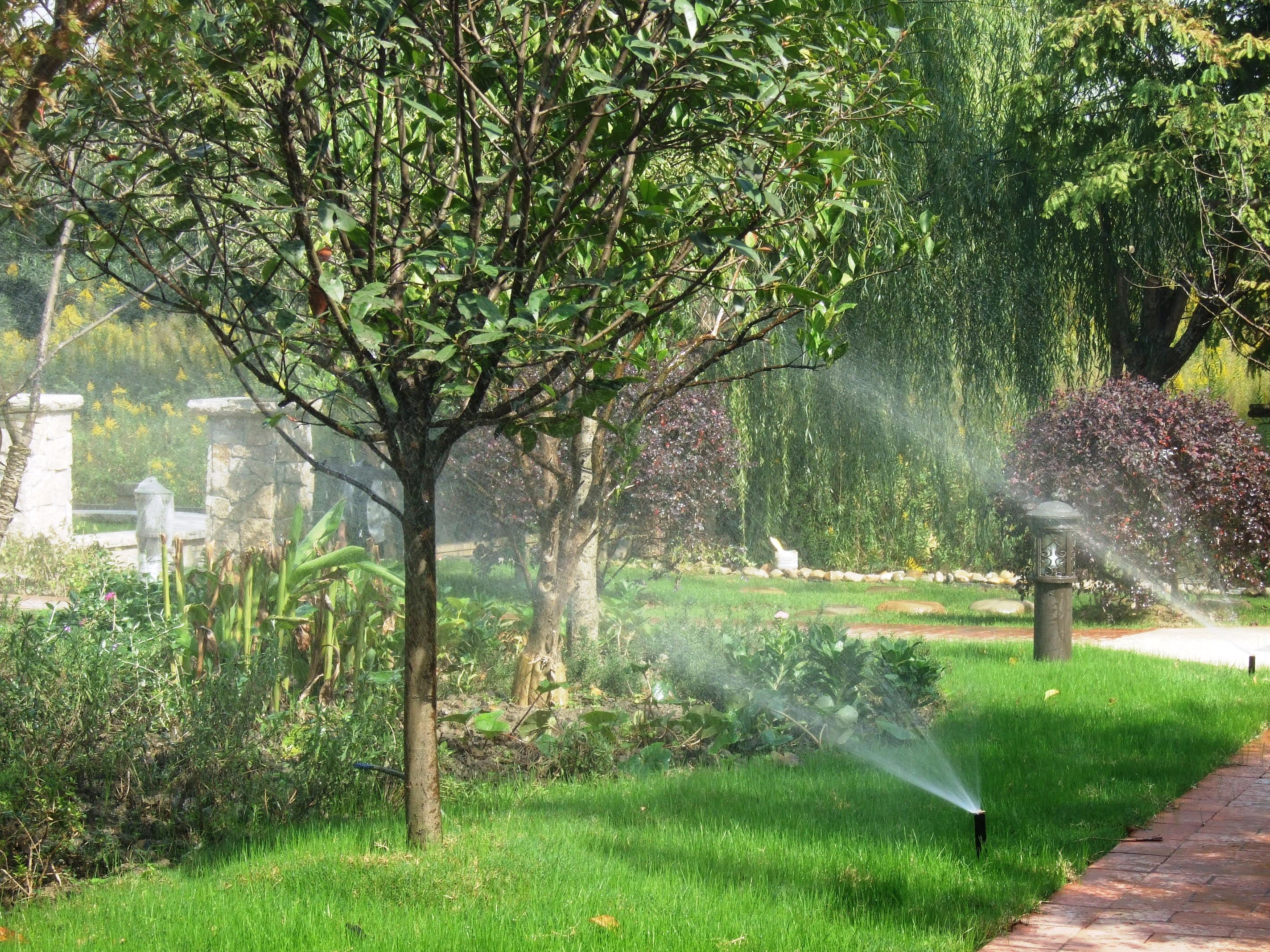

When it comes to maintaining a lush and healthy large - area lawn for gardening, a well - functioning irrigation system is crucial. One of the key components of an irrigation system is the sprinkler valve, and within the valve, the solenoid plays an essential role.
The solenoid valve in a sprinkler system serves as an electrically - operated switch. Its main purpose is to control the flow of water through the sprinkler valve. When the irrigation controller sends an electrical signal, the solenoid activates. This action opens the valve, allowing water to flow from the main water supply to the sprinkler heads, thus irrigating the lawn. Without a properly working solenoid, the sprinkler valve cannot be accurately controlled, and the irrigation system will not function as intended.
A lawn sprinkler solenoid typically consists of a coil of wire and a plunger. When an electrical current from the irrigation controller passes through the coil, it creates a magnetic field. This magnetic field attracts the plunger, which is connected to a valve mechanism. As the plunger moves, it opens a passageway within the sprinkler valve, enabling water to flow. When the electrical current stops, the magnetic field dissipates, and a spring within the solenoid pushes the plunger back to its original position, closing the valve and stopping the water flow.
Globe Valves: These valves are known for their ability to regulate water flow precisely. They have a spherical body with a movable disk that controls the opening and closing of the valve.
Butterfly Valves: Feature a circular disc that rotates to control water flow. They are often used in larger - diameter pipelines due to their relatively low cost and compact size.
Diaphragm Valves: Use a flexible diaphragm to control water flow. When the solenoid activates, it either lifts or lowers the diaphragm, allowing or blocking water passage.
Valve Body: This is the main housing that contains all the internal components of the valve. It is usually made of durable plastic or metal.
Diaphragm (in diaphragm valves): As mentioned earlier, it is a flexible component that controls water flow.
Spring: Responsible for returning the solenoid plunger or other moving parts to their original position when the electrical current stops.
Inlet and Outlet Ports: These are the openings through which water enters and exits the valve.
Check the Electrical Connection: First, ensure that the solenoid is receiving power. Disconnect the wires from the solenoid and use a multimeter to test for voltage at the connection points on the irrigation controller. If there is no voltage, the problem may lie with the controller. If there is voltage, move on to the next step.
Inspect the Solenoid Coil: Using the multimeter set to measure resistance, check the resistance of the solenoid coil. Each solenoid has a specific resistance value, which can usually be found in the product documentation. If the measured resistance is significantly different from the specified value, the coil is likely bad and needs to be replaced.
Check for Debris: Remove the solenoid from the valve and inspect the valve seat for any debris that may be blocking the water passage. Even a small piece of dirt or sand can prevent the valve from opening properly. Clean the valve seat if necessary.
Faulty Diaphragm: If water is leaking from the valve even when it is supposed to be closed, the diaphragm may be damaged. Remove the valve cover and check the diaphragm for any signs of cracks or tears. Replace the diaphragm if it is faulty.
Loose Solenoid or Valve Connections: Make sure that the solenoid is properly tightened onto the valve body. Also, check all the other connections, such as the inlet and outlet pipes, for any looseness. Tighten any loose connections to stop the leakage.
Electrical Interference: Sometimes, electrical interference from nearby electrical equipment can cause the solenoid to receive incorrect signals. Check if there are any high - voltage lines or other electrical devices close to the irrigation system. If so, try to shield the wires or move the equipment if possible.
Worn - out Solenoid Parts: Over time, the plunger or other moving parts of the solenoid can wear out, causing erratic operation. If this is the case, replacing the solenoid is usually the best solution
6. Sprinkler Valve Solenoid Replacement
If you determine that the solenoid is bad, here are the steps to replace it:
Turn off the Water Supply: Locate the main water shut - off valve for the irrigation system and close it to prevent water from flowing during the replacement process.
Disconnect the Wires: Carefully remove the wires connected to the solenoid. Make sure to note which wire goes where for easy re - connection later.
Remove the Old Solenoid: Use an appropriate tool, such as a wrench, to unscrew the solenoid from the valve body. Be careful not to damage the valve threads.
Install the New Solenoid: Take the new solenoid and screw it into the valve body, ensuring that it is tightened securely.
Re - connect the Wires: Connect the wires to the new solenoid in the same order as they were connected to the old one.
Turn on the Water Supply: Slowly open the main water shut - off valve and check for any leaks around the solenoid or valve connections.
Turn off the Controller: This ensures that the solenoid is not receiving any electrical signals from the controller.
Locate the Manual Override: On many valves, this is a small screw - like knob or a lever.
Open the Valve Manually: Turn the manual override in the appropriate direction (usually counter - clockwise) to open the valve. You should hear and feel water flowing.
Close the Valve: Turn the manual override back in the opposite direction (clockwise) to close the valve. If the valve does not open or close properly when using the manual override, there may be a problem with the valve mechanism itself, separate from the solenoid.
