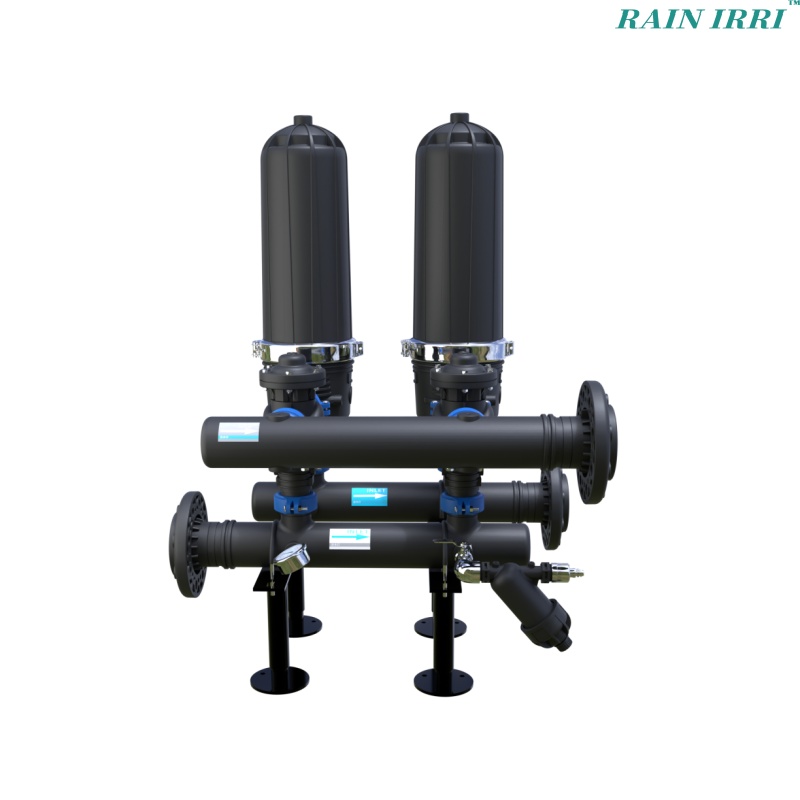

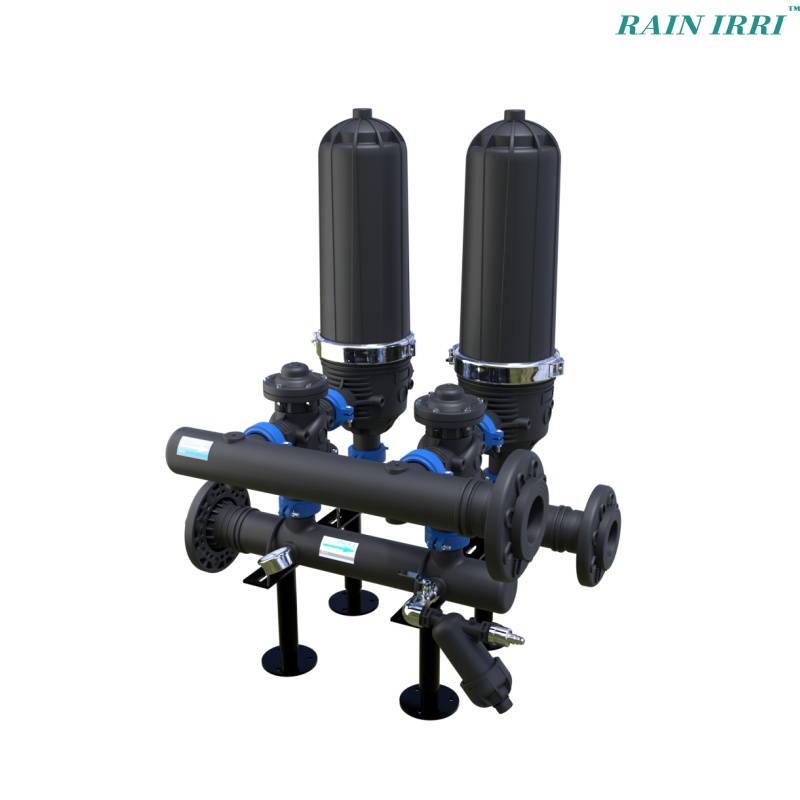

JFF-BNYD50SL
Rainirri
| Color: | |
|---|---|
| Material: | |
| Size: | |
| Quantity: | |
Product Description
Efficient Filtration: The disc structure has a large filtration area and strong dirt interception capability, suitable for treating water sources with high turbidity.
High Degree of Automation: The backwashing process is fully automatic, saving water and labor. Backwashing water consumption is only about 1% of the filtered water volume.
Strong Durability: The main body is mostly made of engineering plastic or stainless steel, with corrosion resistance and long service life.
Flexible Combination: Multiple filter units can be combined according to flow requirements, adapting to water treatment systems of different scales.
| Spare parts | Housing | Disc | Sealing parts | Element frame Piston component | |
| 2S.3N.3DN.4DN | reinforced nylon with glass fiber | Modified PP | NBR S.S.304 | reinforced nylon with glass fiber | reinforced nylo nwith glass fiber |

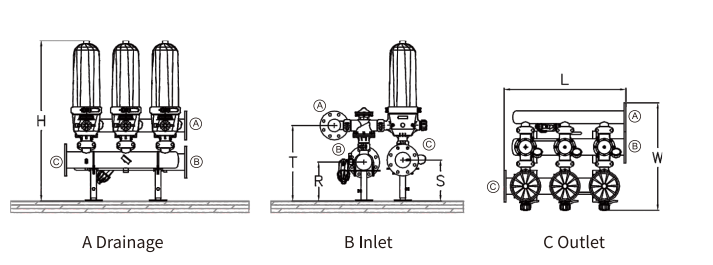

| Model | CONNECT SPECIFICATION | SIZE(MM) | Welght(G) | ||||||
| A | B | C | E | M | H | W | X | ||
| JFF-BNYD50SL | 2"VIC | 2"VIC | 2"BSP | 3/4"BSP | 1/4"BSP | 741 | 334 | 152 | 8.88 |

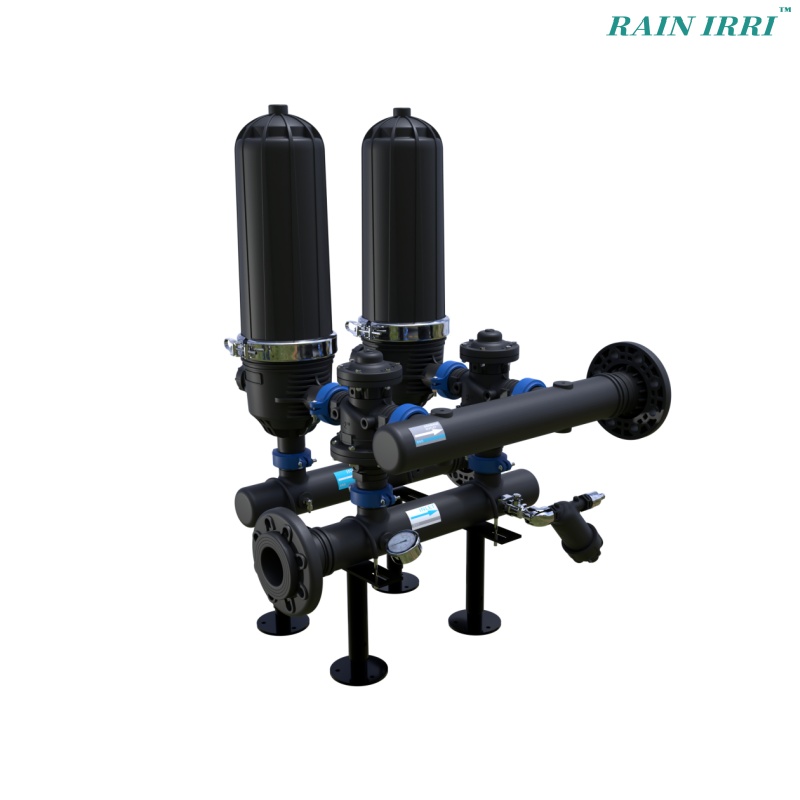

| JFF-BNYD80NL | 2"VIC | 3"VIC | 3"BSP | 3/4"BSP | 1/4"BSP | 741 | 334 | 152 | 8.88 |
| JFF-BNYD80DSM | 3"VIC | 3"VIC | 3/4"BSP | 1/4"BSP | 1206 | 334 | 15 | ||
| JFF-BNYD100DSM | 4"VIC | 4"VIC | BSP | BSP | 1206 | 334 | 15.76 | ||

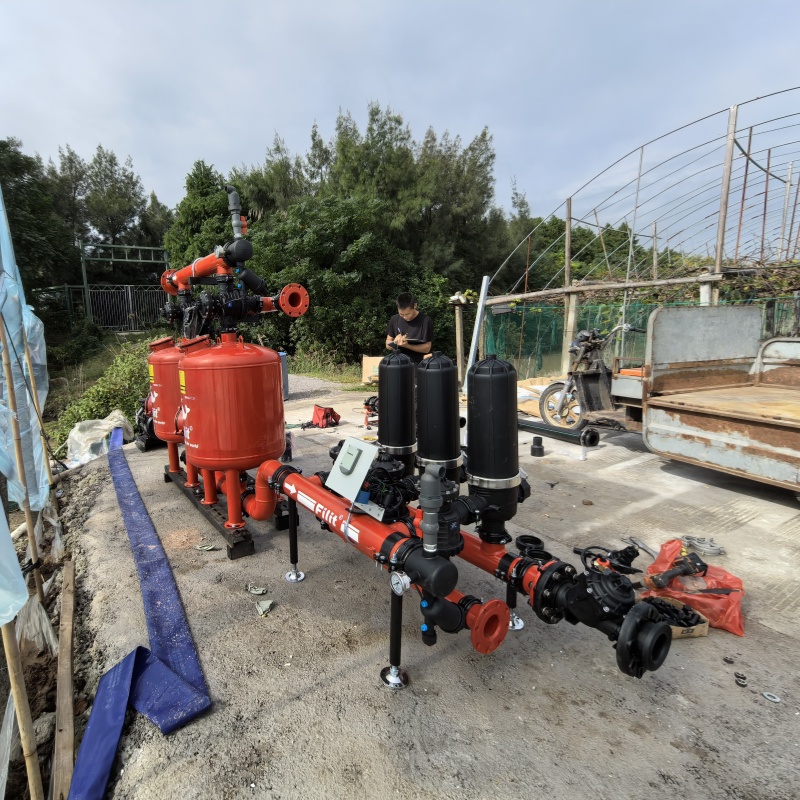

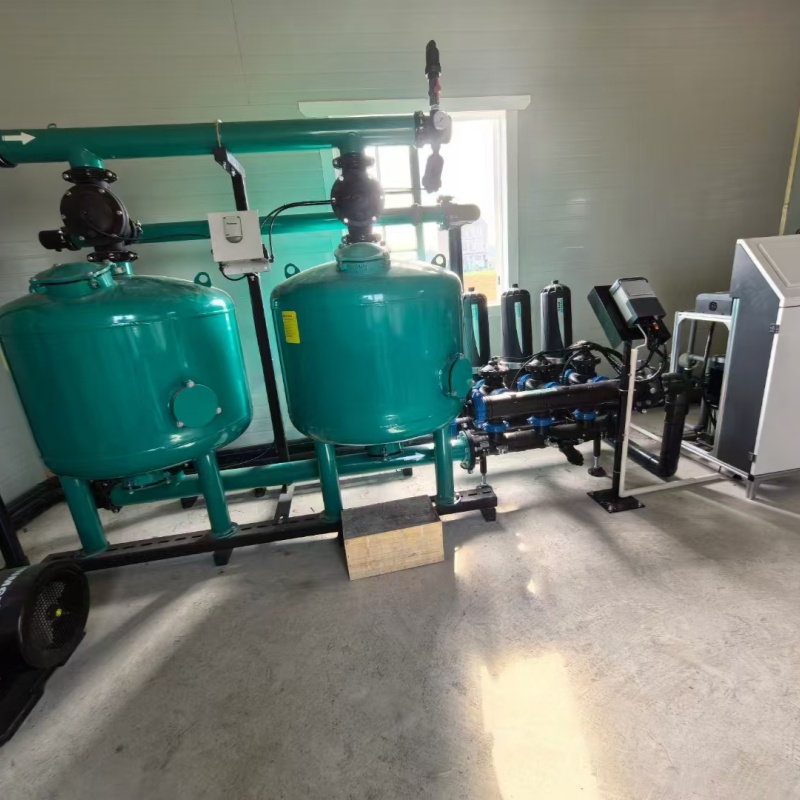

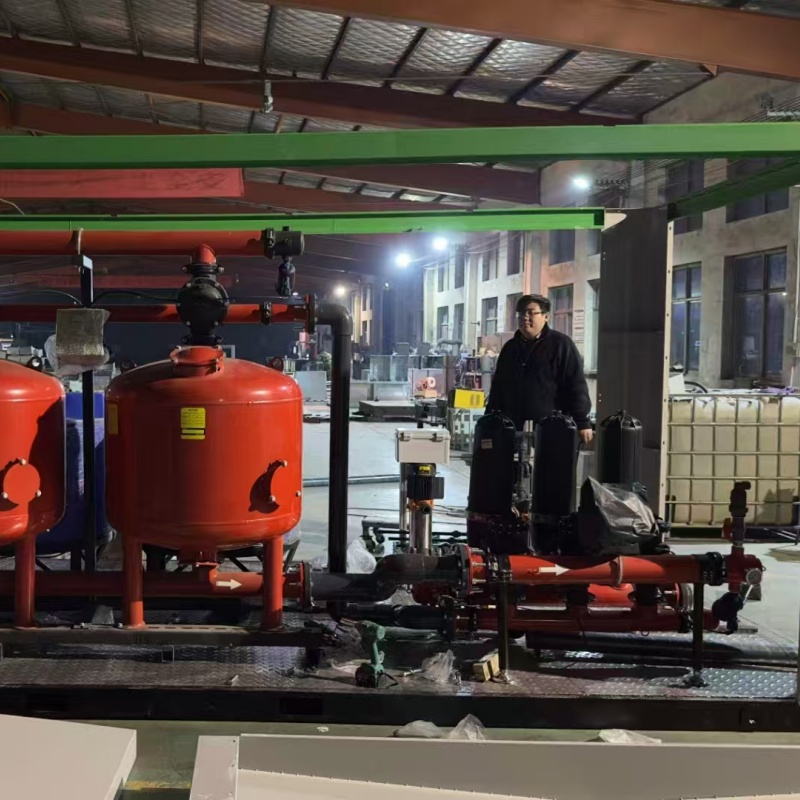

Agriculture: Filtration of water sources for drip irrigation and sprinkler irrigation systems to prevent nozzle blockage.
Industry: Filtration of cooling circulating water and process water to protect equipment from impurity damage.
Municipal and Environmental Protection: Reclaimed water reuse in sewage treatment plants, landscape water purification, etc.
