JF-9815
RAINIRRI
| Working pressure : | |
|---|---|
| jet Angle: | |
| Material: | |
| External thread: | |
| box size: | |
| Weight : | |
| quantity one box: | |
| Quantity: | |
Product Description

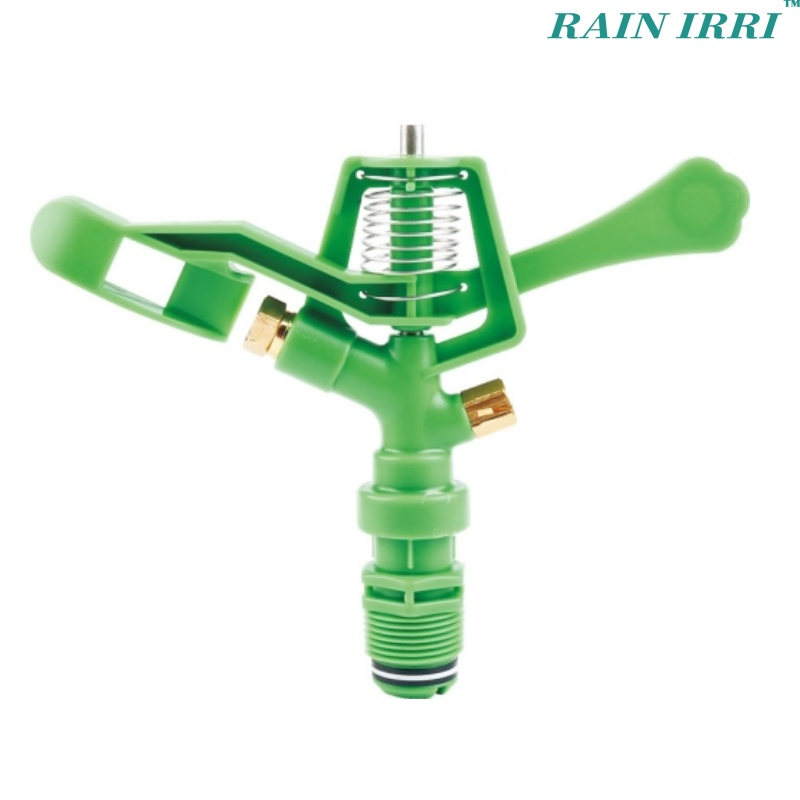

JFMS-9815 360 Degree Two Way Rotating Impact Sprinkler for Garden Irrigation System
Our country only introduced sprinkler irrigation technology in 1954, and in the early stage, the country led the establishment of a joint design team to launch the PY series of nozzles (rocker type nozzles) in a short period of time.
Currently, China is very mature in the technology research and development, quality control, and practical market applications of Impact sprinkler. It has been widely applied in agricultural irrigation projects in China
What is the Advantage of Impact Sprinkler!
1. Sprinkler can greatly save manpower and material resources, improve work efficiency, have a long range, and overall, have stable performance and long service life.
2. The circular shaped Sprinkler for irrigation. every inch of land can receive water, ensuring high efficiency, uniform water content, and energy-saving and water-saving, in response to the call.
What is the Applications of the Impact Sprinkler!
Applications
High Irrigation Trajectory Angle:
Vegetables and Open Field Crops
Open field Nurseries
Germination and Frost Protection
colling Fruit Orchards
How Does the Impact Sprinkler Use?
During sprinkler irrigation, the water jet from the nozzle shoots onto the water guide plate of the front end of the rocker arm, and the reaction force of the water jet causes the rocker chamber to gain kinetic energy and swing counterclockwise. When the rocker arm swings, it rotates around the rocker arm shaft, causing the rocker arm spring to twist and generate torque.
When the rocker arm swings to the end point, the rocker arm spring obtains a large torque. At this point, the rocker arm stops rotating counterclockwise. Under the action of the spring torque, the rocker arm begins to swing back and accelerates clockwise rotation. When the water guide of the rocker arm cuts into the water flow, the deflector first receives the impact of the water flow, and the reaction force generated accelerates the rocker arm to swing back.
Under the combined action of the inertia moment of the swing back and the reaction force of the water flow on the deflector, the rocker arm collides with the striking block of the nozzle body at a high angular velocity, causing the nozzle to rotate clockwise by 3 to 5 degrees. After the collision, the rocker arm is swayed again under the action of water flow, repeating the above rotating motion process to drive the nozzle to move intermittently and spray water.
Products Parameters
| Product Parameters | |
| interface size | G3/4" |
| Pressure | 1-3.0Bar |
| Range | 10-12m |
| Flow | 1700-2500L |
| Packaging | |
| Size | 45*35*28CM |
| Quantity | 100pcs |
| G.W/N.W | 9/8KG |
| Material | POM |
Different Type of connect:
Our company is a professional facility agriculture and water-saving irrigation installation and design company for more then10 years. Our team has 2 chief engineers, 6 engineers, 6 projectmanagers, and 12 techniciansUndertake all kinds of irrigation,water and fertilizer integration smart digital agriculture,agricultural Internet of Things project engineering design andconstruction. And We have4000 square meters of qualityinspection workshop.we have strong supplier internet and strongTechnical Support For our customersWe Provide one-stoppackaging service for projects, welcome to call.
