Product Description
Rainirri Adjustable Pop Up Garden Scattering Sprinkler Heads for Landscape Horticulture Lawn Greening
Garden scattering sprinklers are a type of equipment commonly used for irrigation in garden greening. The following will introduce them from aspects such as their working principle, characteristics, applicable scenarios, main types, and key points of installation and maintenance:
Working Principle: Relying on water pressure and the function of the nozzle, water is evenly sprayed out in a scattered manner to form coverage of the ground surface, thus achieving the irrigation of garden plants.

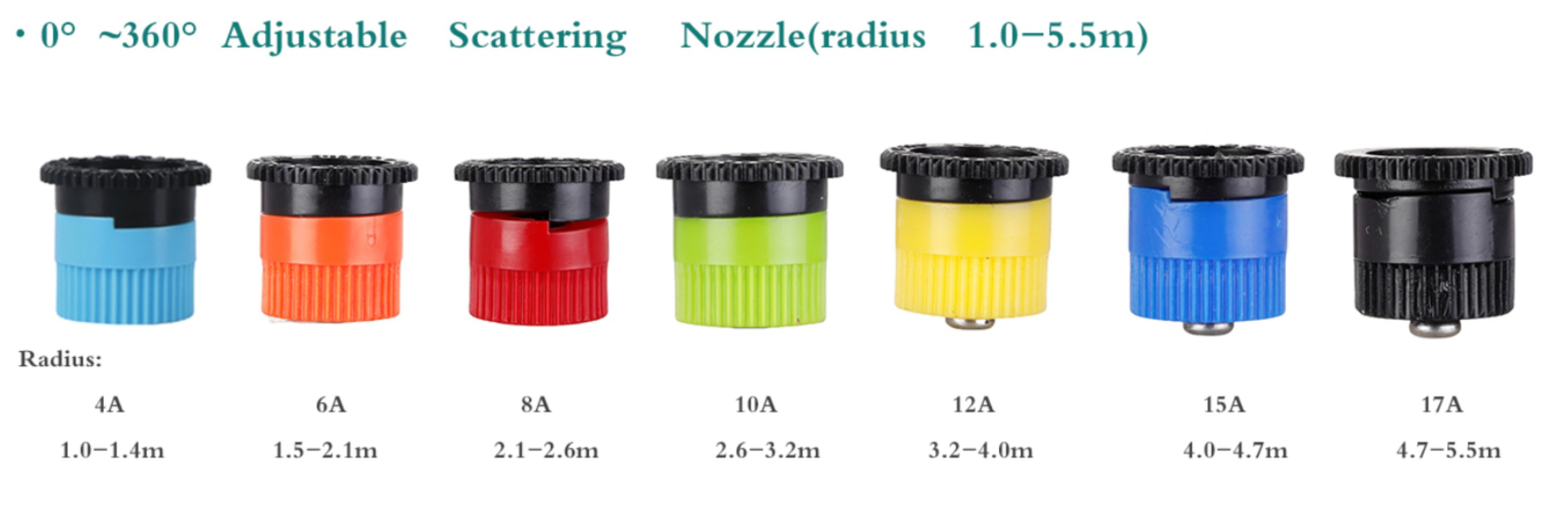

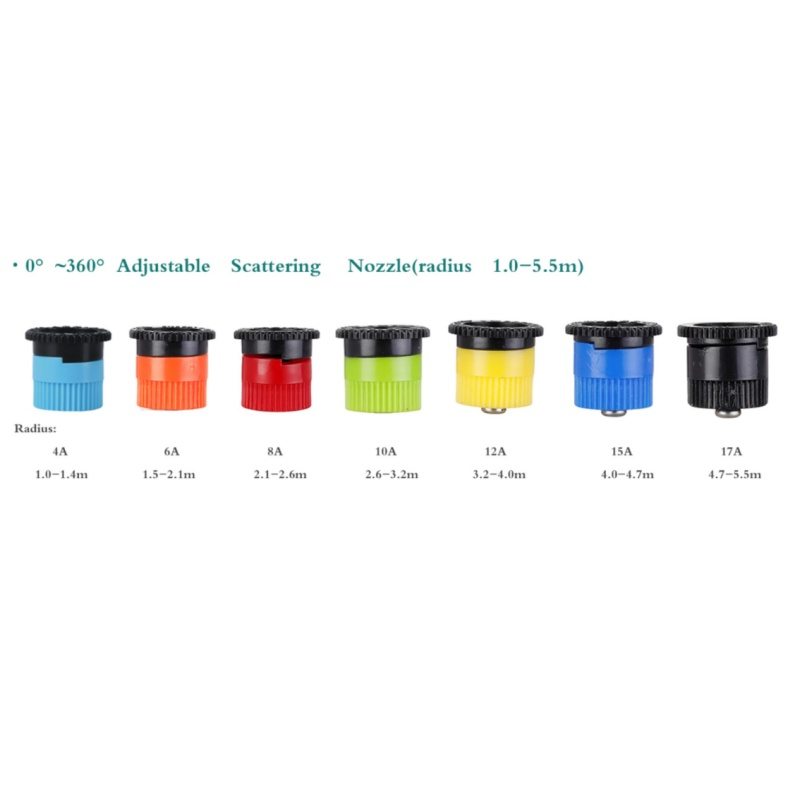

Fixed Pattern RAY Rotary Nozzles (Radius 1.0-5.5m)
| Pressure | 1.5Bar | 2 Bar | 2.5 Bar | 3.0 Bar | |||||
| Paranmeter Model | Flom(mYhr) | Radluifm) | Flaw{mYhr | Radlus(m) | Flaw(mhr) | Radism) | Floufm³hr) | RLadiua(mj | |
4A | 90° 180° 270° 360° | 0.06 0.09 0.15 0.17 | 1.0 1.0 1.0 1.0 | 0.06 0.11 0.17 0.19 | 1.2 1.2 1.2 1.2 | 0.08 0.12 0.19 0.22 | 1.3 1.3 1.3 1.3 | 0.09 0.14 0.23 0.25 | 1.4 1.4 1.4 1.4 |
6A | 90 180° 270° 360° | 0.07 0.12 0.21 0.24 | 1.5 1.5 1.5 1.5 | 0.08 0.13 0.24 0.28 | 1.8 1.8 1.8 1.8 | 0.09 0.15 0.27 0.30 | 1.9 1.9 1.9 1.9 | 0.10 0.16 0.29 0.33 | 2.1 2.1 2.1 2.1 |
8A | 90 180° 270° 360 | 0.09 0.17 0.26 0.35 | 2.1 2.1 2.1 2.1 | 0.10 0.20 0.30 0.40 | 2.3 2.3 2.3 2.3 | 0.11 0.22 0.33 0.44 | 2.5 2.5 2.5 2.5 | 0.12 0.24 0.36 0.48 | 2.6 2.6 2.6 2.6 |
| 90 180° 270° 360° | 0.10 0.19 0.29 0.39 | 2.6 2.6 2.6 2.6 | 0.11 0.23 0.34 0.45 | 2.7 2.7 2.7 2.7 | 0.13 0.25 0.38 0.51 | 3.1 3.1 3.1 3.1 | 0.14 0.28 0.42 0.56 | 3.2 3.2 3.2 3.2 | |
| 10A | |||||||||
12A | 90° 180° 270 360° | 0.12 0.24 0.36 0.48 | 3.2 3.2 3.2 3.2 | 0.15 0.29 0.44 0.58 | 3.6 3.6 3.6 3.6 | 0.17 0.35 0.52 0.69 | 3.8 3.8 3.8 3.8 | 0.20 0.40 0.60 0.80 | 4.0 4.0 4.0 4.0 |
15A | 90° 180° 270° 360° | 0.18 0.36 0.54 0.72 | 4.0 4.0 4.0 4.0 | 0.21 0.43 0.64 0.86 | 4.5 4.5 4.5 4.5 | 0.24 0.48 0.72 0.96 | 4.7 4.7 4.7 4.7 | 0.27 0.54 0.81 1.08 | 4.7 4.7 4.7 4.7 |
17A | 90° 180° 270° 360° | 0.24 0.49 0.74 0.98 | 4.7 4.7 4.7 4.7 | 0.27 0.55 0.83 1.11 | 4.9 4.9 4.9 4.8 | 0.32 0.62 0.93 1.24 | 5.2 5.2 5.2 5.2 | 0.35 0.68 1.03 1.36 | 5.5 5.5 5.5 5.5 |
Suitable Pop up Sprinkler Body
| Working Specification | |
Inlet diameter | 1/2"Internal thread |
FLOW | 0.1-1.3 m³/h |
RANGE | 2.5-5.0METER |
Recommended work pressure: | 1.8-4bar |
performance The altitude of the product POP UP: | 0/5cm/10cm/15cM/30CM |
performance The altitude of the product base: | 4.5CM/10CM/15CM/22.5CM/41CM |
Characteristics
Good Concealment: Usually installed below the ground surface. When there is a water pressure supply, it pops up above the ground surface for irrigation. After the irrigation is completed, it automatically retracts underground, is not easily damaged by humans, and has no impact on the garden landscape.
Uniform Spraying: Through reasonable layout, it can achieve basically the same sprinkler irrigation intensity on the plane, ensuring the uniformity of irrigation so that garden plants can all receive sufficient and uniform moisture.
Water-saving and Efficient: The sprinkler irrigation intensity can be adjusted according to the needs of plants to avoid the waste of water resources. Compared with traditional irrigation methods, it can provide plants with the required moisture more accurately and improve the utilization efficiency of water resources.
Simple Maintenance: Some garden scattering sprinklers adopt a modular design. The entire sprinkler inner core can be screwed out from the top, making cleaning and maintenance convenient. Moreover, the nozzles of some sprinklers adopt an anti-blocking design to ensure long-term stable operation.
Diverse Specifications: There are various lifting heights, ranges, and flow specifications to choose from. Different types of nozzles can also be equipped, such as adjustable fan-shaped nozzles and double-hole nozzles, to meet the needs of different plants and irrigation areas.
Applicable Scenarios
Small Lawns: The range and spraying area of the scattering sprinkler are moderate, and it can accurately irrigate small lawns to ensure that the lawn receives uniform water supply and maintain the healthy growth of the lawn.
Flower Beds: For flower planting areas, the scattering sprinkler can evenly spray water on the roots of the flowers, avoiding the impact of water flow on the flowers. At the same time, it can meet the water needs of the flowers, which is helpful for the growth and development of the flowers.
Shrub Areas: The adjustable scattering sprinkler can adjust the spraying angle and range according to the height and shape of the shrubs, so that the shrubs can be fully irrigated and promote the lush growth of the shrubs.
Installation and Maintenance
Installation: When installing, the spacing of the sprinklers needs to be determined according to the plant type and soil characteristics. Generally, the coverage radius is between 3-6 meters. It is necessary to ensure that the sprinklers are installed horizontally to avoid uneven spraying caused by installation tilt.
Maintenance: Regularly clean the impurities in the nozzles to prevent blockage. Check the tightness of the sprinklers and see if there is any water leakage. In the non-irrigation season, it is recommended to carry out drainage and anti-freezing treatment on the sprinklers to extend the service life of the sprinklers.
