Durable PP Irrigation Valve Boxes for Gardening And Agriculture Solution Project

The garden plastic valve box is a device specially designed to protect and manage valves and related accessories in the garden irrigation system

Our valve box is made from intensive and UV-protection plastics,do not contain any metal. It's been widely used in park, golf court, garden, express highway, home water meter protecting. Our valve box is suitable for protecting water meter, air valve, rapid water valve, drain valve,solenoid valve,manual valve and filtrating equipment,etc.

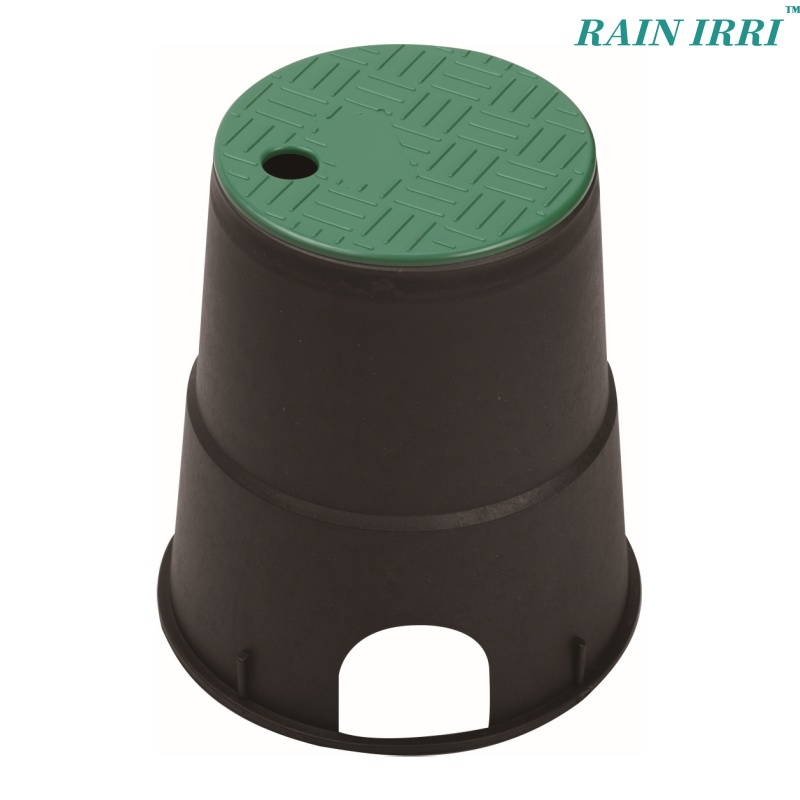

Model:V708

·ProductName:6"ValveBox

Height:235mm;Bottom Diameter:210mm;

Top Diameter:155mm

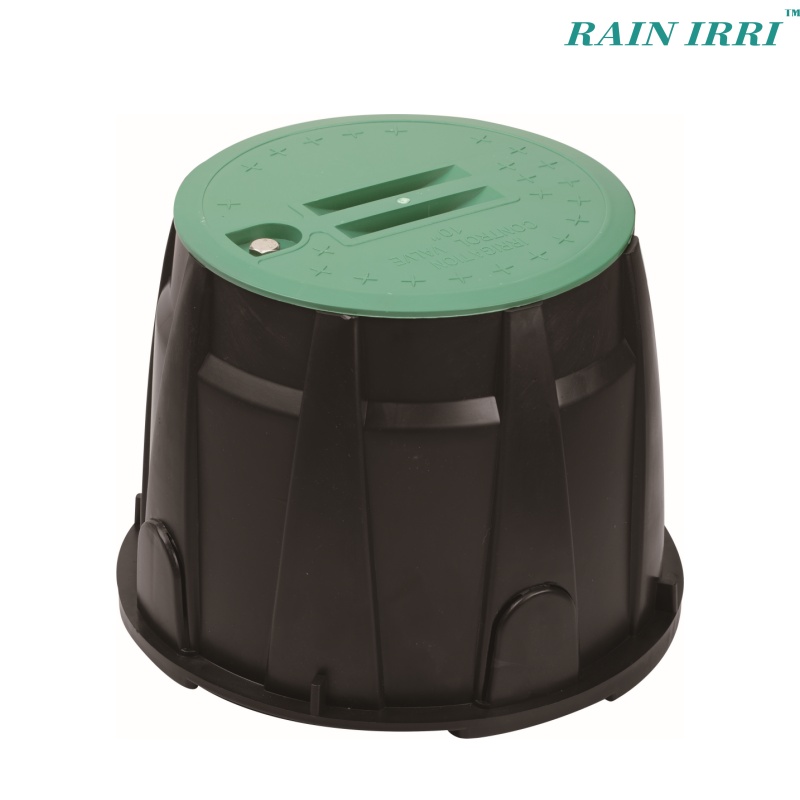

 Model:V910

·Product Name:10"ValveBox

Height:245mm;Bottom Diameter:340mm;

Top Diameter:265mm

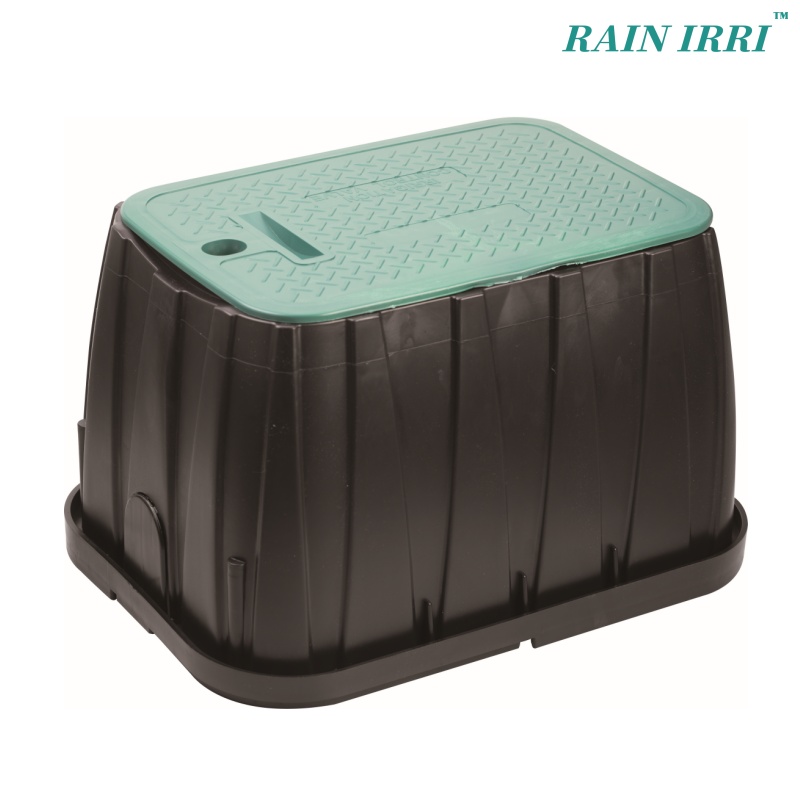

 Model:V1419

·Product Name:12"valve box

Bottom Length:520mm,Width 380mm,

Height:305mm;TopLength:435mm,width:300mm

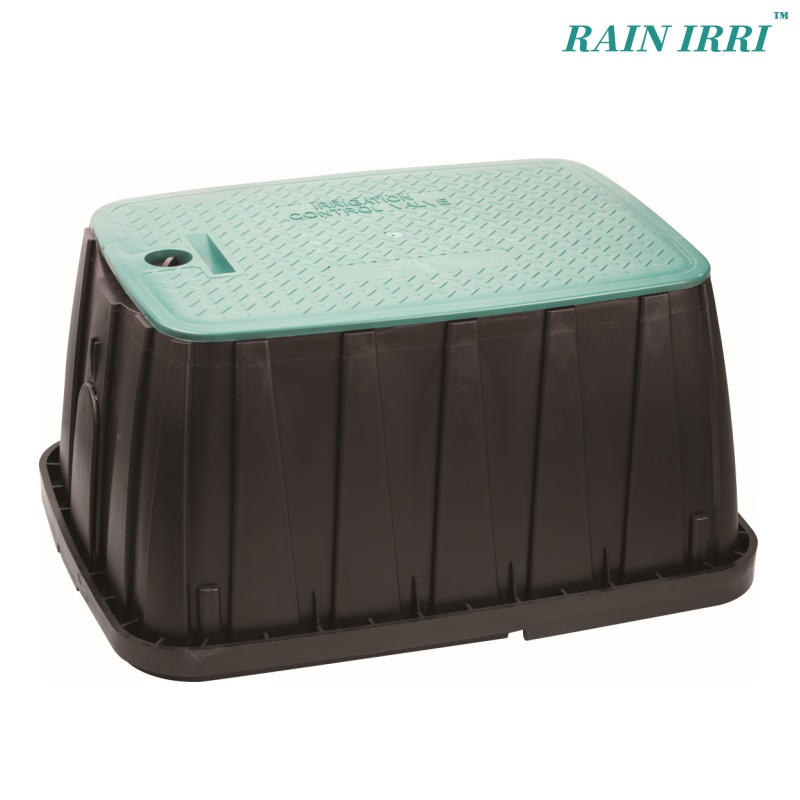

Model:V1320

·Product Name:14"valve boxBottomLength:650mm,width 490mm,

Height:310mm;Top Length:550mm,

Width:390mm

Features

• Strong Corrosion Resistance: The plastic material has excellent corrosion resistance, capable of withstanding the erosion of moisture, acidic and alkaline substances in the soil. It is not prone to rusting and damage, and can be used outdoors for a long time.

• Lightweight: Compared with valve boxes made of metal materials, the plastic valve box is lighter in weight, making it easier to carry and install. This reduces the construction difficulty and labor intensity.

• Good Insulation Performance: It has good insulation properties, which can prevent the impact of electrical interference or electric leakage on the irrigation system, thereby improving the safety of the system.

• Lower Cost: The production process of the plastic valve box is relatively simple, and the material cost is also low. Therefore, it is more affordable in price, effectively reducing the construction cost of the garden irrigation system.

• Aesthetic Appearance: It is usually white or other light colors, with a uniform color and a simple appearance, which is in harmony with the garden landscape and will not affect the overall beauty of the garden.

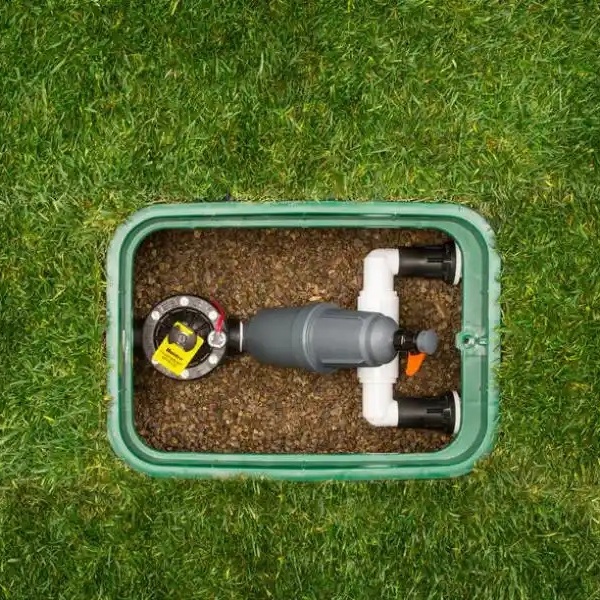

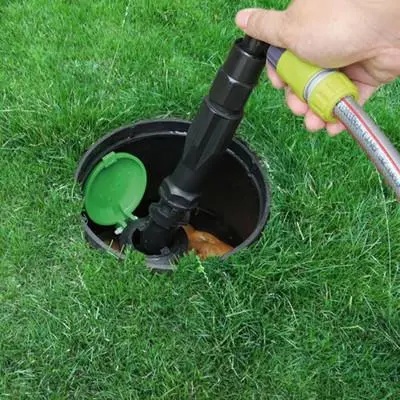

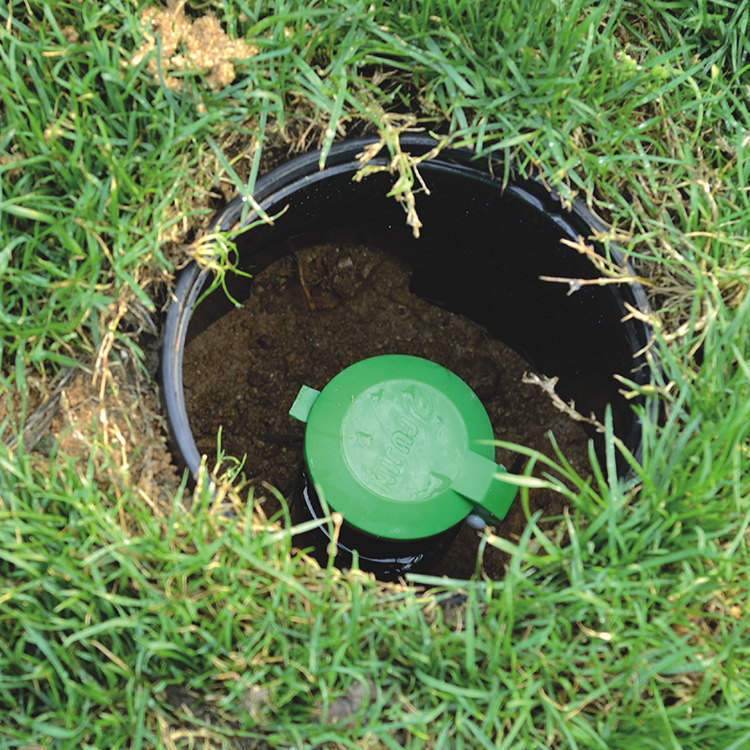

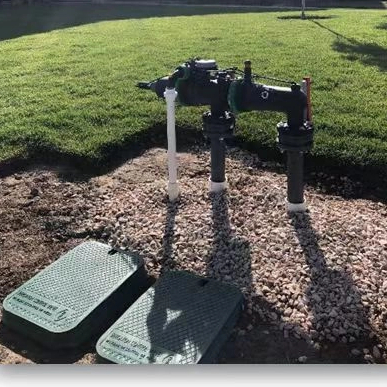

Application of Valve Box

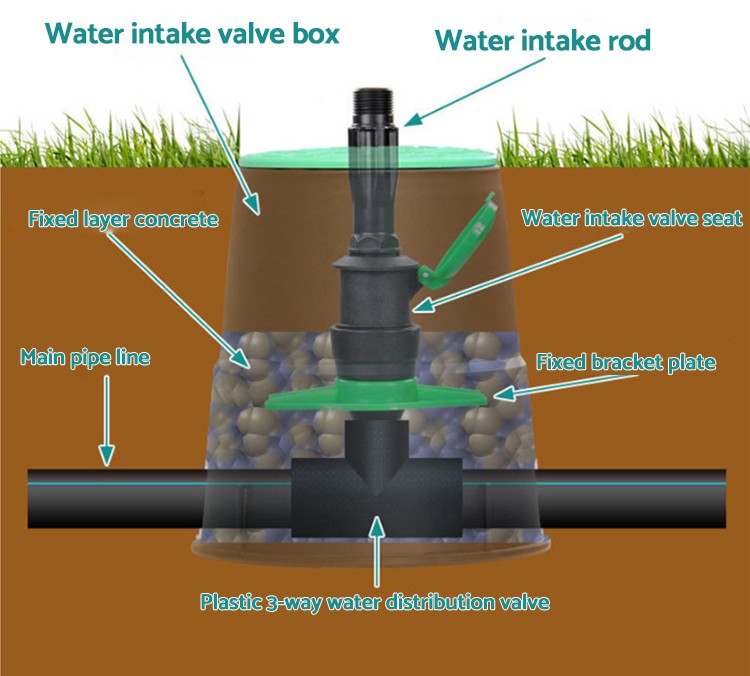

Structure

Structure

Box Body: Generally, it is in the shape of a cuboid or a cylinder, with a certain depth and volume to accommodate devices such as valves and pipe fittings. The wall thickness of the box body varies according to different usage requirements and strength standards, usually around 3 - 5 millimeters.

Box Cover: It is connected to the box body through hinges or buckles, allowing for easy opening and closing. There is usually a handle or puller on the box cover for convenient operation. Some box covers are also equipped with sealing rubber rings to enhance the sealing performance of the box body, preventing rainwater, soil, etc. from entering the box.

Mounting Holes: Both the box body and the box cover are provided with mounting holes for fixing the valve box to the ground or wall. The size and number of the mounting holes depend on the size and weight of the valve box. Generally, expansion bolts or screws are used for fixing.



The choice of its size mainly depends on factors such as the size and quantity of the installed valves and the layout of the pipe fittings. A small-sized valve box is suitable for installing a single small valve or a simple combination of pipe fittings, while a large-sized valve box can accommodate multiple valves, filters, pressure gauges and other devices, and is suitable for more complex garden irrigation systems.
