Rainirri Heavy Duty Plastic Automatic Lawn Solenoid Valves for Garden And Landscape Irrigation Project

Share to:

Rainirri Heavy Duty Plastic Automatic Lawn Solenoid Valves for Garden And Landscape Irrigation Project

Model:
EVA 75/100/150,EVD75/100/150
Brand:
RAINIRRI

Material:	Nylon filled with glass fiber
Size:	3/4",1",1.5"
Pressure Range:	0.5-8Bar
Fluid Temperature:	≤60°
Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Description

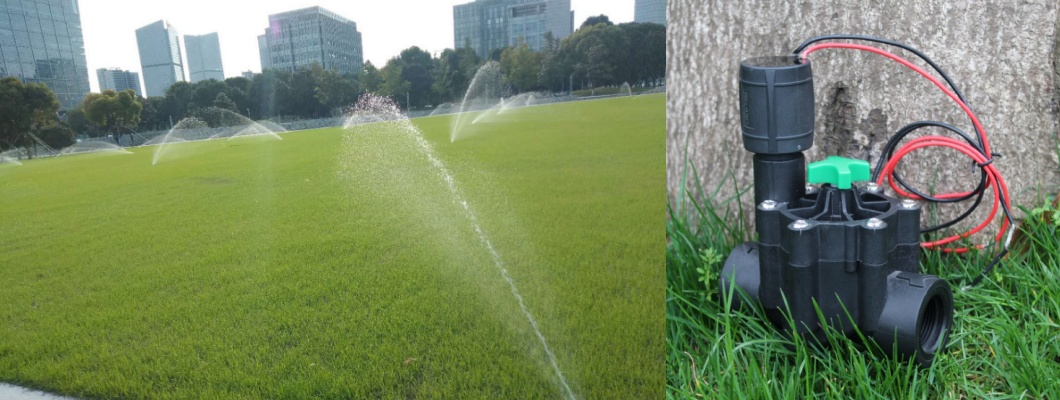

详情图

Structure: The garden solenoid valve usually consists of main components such as the valve body, valve core, and electromagnetic coil. The valve body is the outer shell of the solenoid valve, typically made of corrosion-resistant materials like copper or plastic to adapt to the outdoor environment. The valve core is used to control the opening and closing of the water flow channel, and the electromagnetic coil generates a magnetic field when energized to drive the valve core to act.

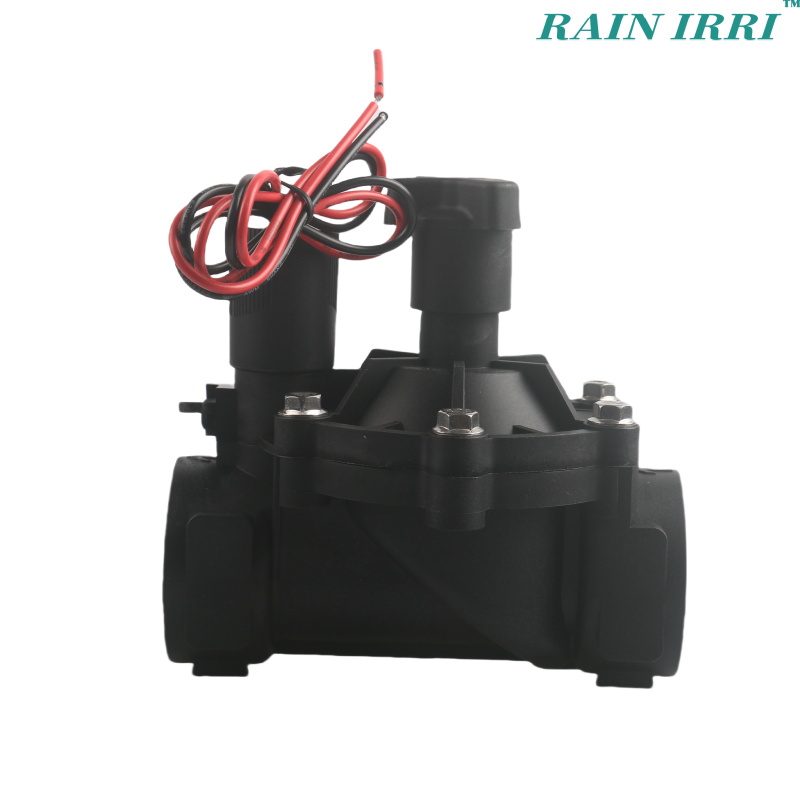

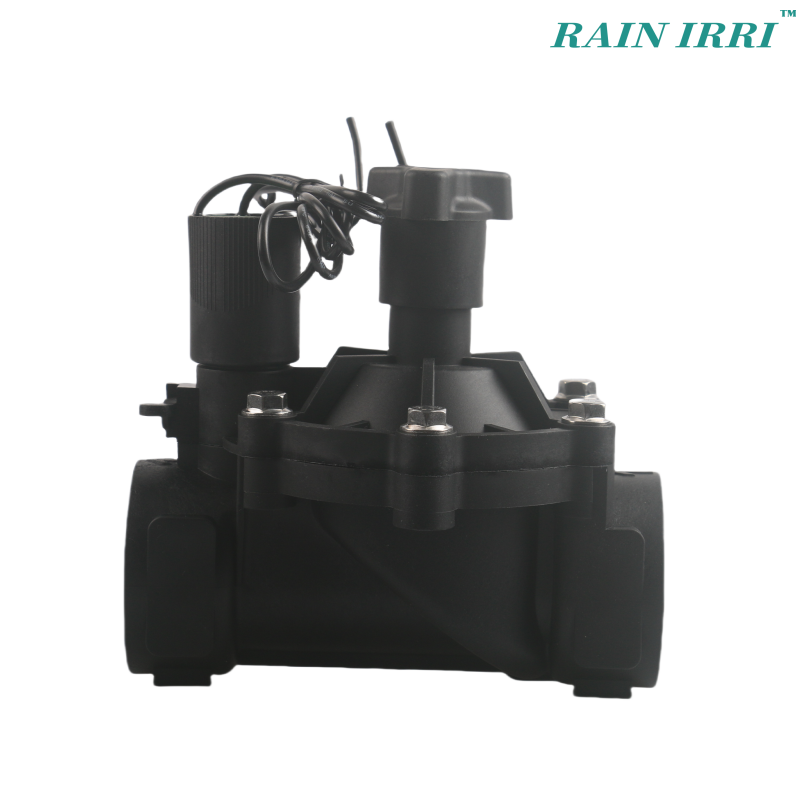

1.5寸DC电磁阀_副本右 Principle: When the electromagnetic coil is energized, it will generate a magnetic field. The magnetic force attracts the valve core to move upward against the spring force, thus opening the valve and allowing water to flow through. When the electromagnetic coil is de-energized, the magnetic field disappears, and the valve core returns to its original position under the action of the spring force, closing the valve and cutting off the water flow.

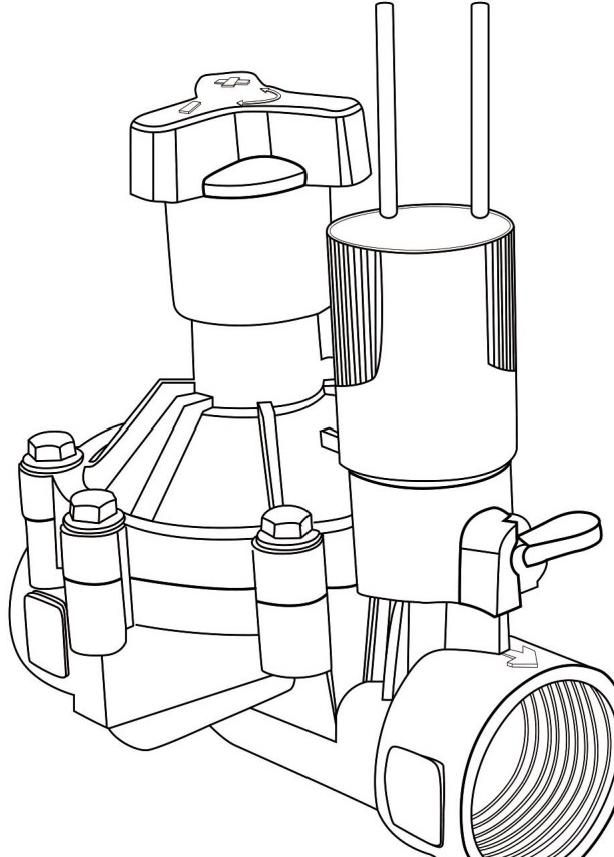

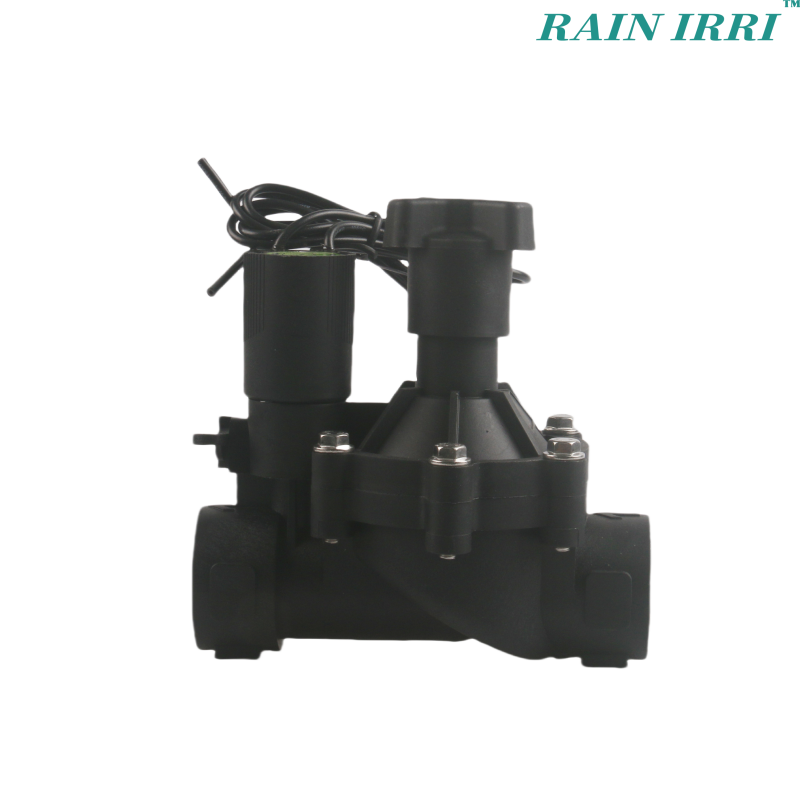

AC 电磁阀

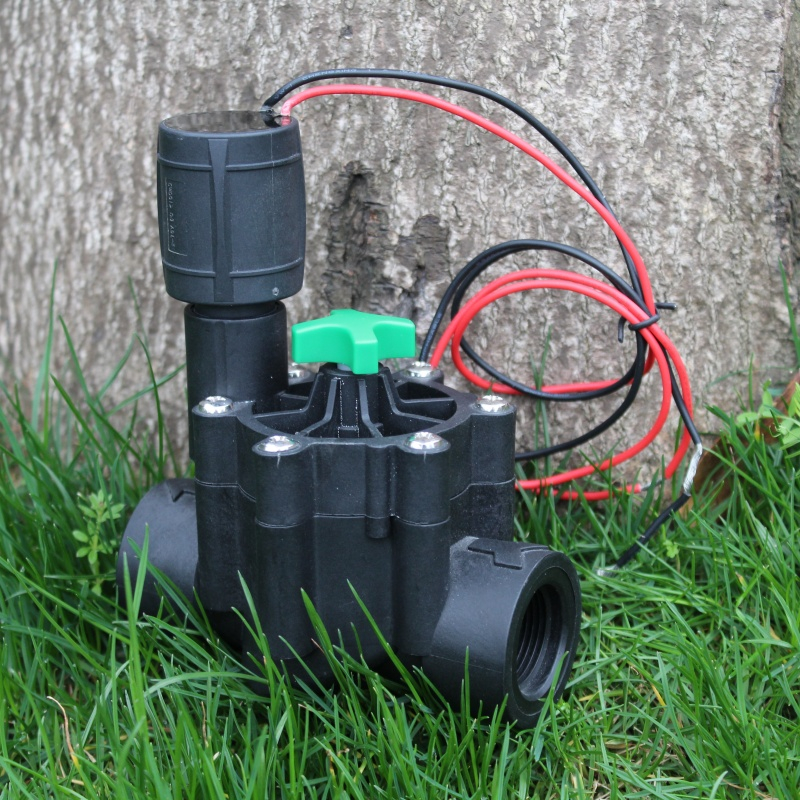

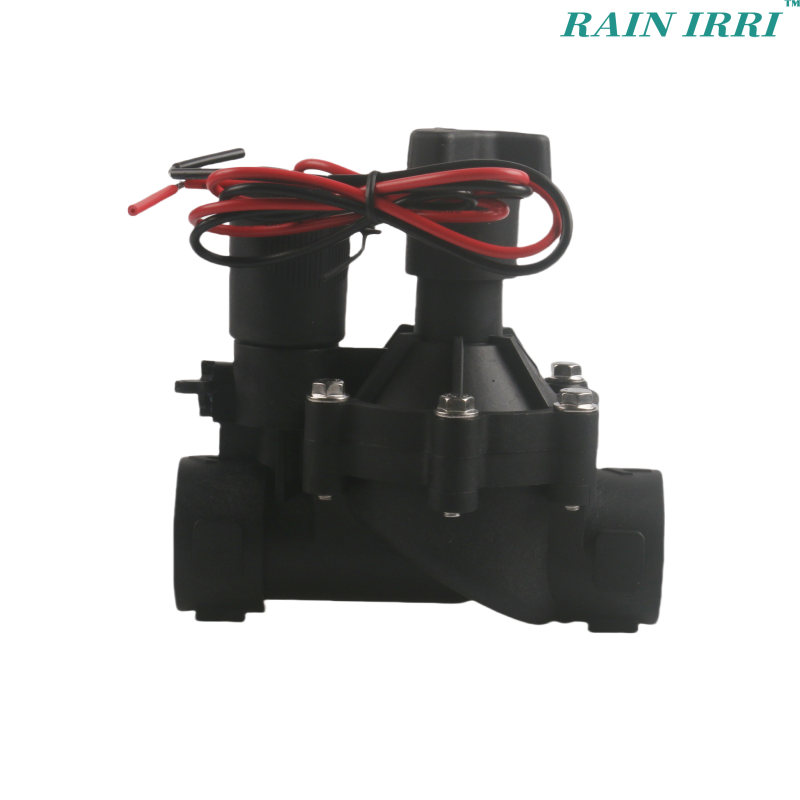

EVA75/100,EVD75/100

Performance Parameters

3/4“Flow:0.98-8.66m³/hr;1”Flow:1.14-9.08m³/hr

Pressure Range:0.5-8Bar

Fluid Temperature:≤60℃

Valve Body Material:Nylon filled with glass fiber

Diaphragm Material:EPDM Rubber

AC Solenoid Head Parameters:Drive Voltage:AC24V±10%,50/60HZ

Opening Current:0.3A

Holding Current:0.18A

DCSolenoid Head Parameters:Working Voltage:DC12V±10%(9-15V)Pulse width<100MS

Head Loss Curve

Flow Rate	m³/hr	0.23	0.60	1.20	3.00	6.00	9.00
Pressure Loss	Bar	0.35	0.36	0.38	0.41	0.43	0.48

EVA120/150,EVD120/150

Performance Parameters

1¹/4"Flow Rate:6.18-20.30m³/hr

1/2"Flow Rate:6.81-22.70m³/hr

Pressure Range:0.5-8Bar

Fluid Temperature:≤60℃

Valve Body Material:Nylon filled with glass fiber

Diaphragm Material:EPDM Rubber

ACSolenoid Head Parameters:

Drive Voltage:AC24V±10%,50/60HZ

Opening Current:0.3A

Holding Current:0.18A

DCSolenoid Head Parameters:Working Voltage:DC12V±10%(9-15V),pulse width<100MS

Head Loss Curve
Flow Rate	m³/hr	6.00	9.00	12.00	15.00	18.00	21.00
Pressure Loss	Bar	0.10	0.22	0.38	0.61	0.86	1.16

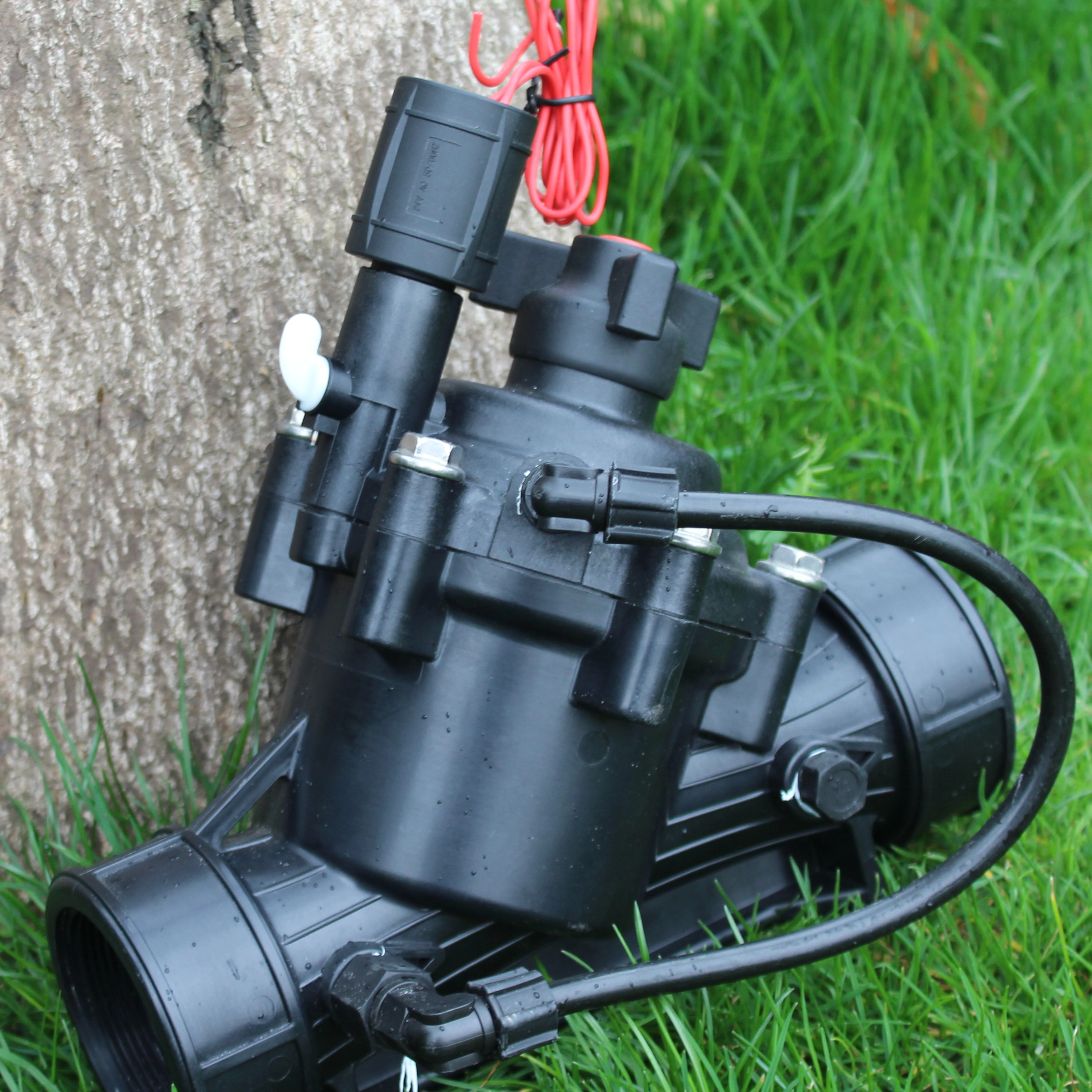

EVA200/EVD200

Interface:2"BSPinternal thread

Working Pressure:0.5-8Bar

Flow Range:9.08-34.05m³/h

Liquid Temperature:≤60℃

Valve Body Material:Nylon filled with glass fiber

Diaphragm Material:EPDM rubber

AC Solenoid Head:

Drive Voltage:AC24V±10%,50/60HZ

Opening Current:0.3A

Holding Current:0.18A

DCSolenoid Head:Drive Voltage:DC12V±10%(9-15V),pulse width<100MSDrive Current:<2A

Head Loss Curve
Flow Rate	m³/hr	9.00	12.00	15.00	18.00	21.00	24.00	27.00	30.00	34.00
Pressure Loss	Bar	0.08	0.12	0.17	0.24	0.33	0.43	0.54	0.66	0.83

Features

Precise control: It can accurately control the on-off of the water flow. In cooperation with the garden controller, it can achieve precise irrigation for different areas and different plants, and supply water accurately according to actual needs.
Rapid response: When the electromagnetic coil is energized and de-energized, the valve core can act quickly. Generally, the opening and closing action can be completed within a few milliseconds to dozens of milliseconds, and it can respond promptly to the control commands of the irrigation system.
High reliability: It adopts a sealed design to prevent water leakage, and the internal structure is relatively simple, making it less likely to malfunction. It can maintain stable performance during long-term outdoor use and reduce maintenance costs.
Strong compatibility: It has various specifications and interface forms, and can be connected to different types of irrigation pipes, sprinklers and other equipment, adapting to the layout and requirements of various garden irrigation systems.

Application Scenarios

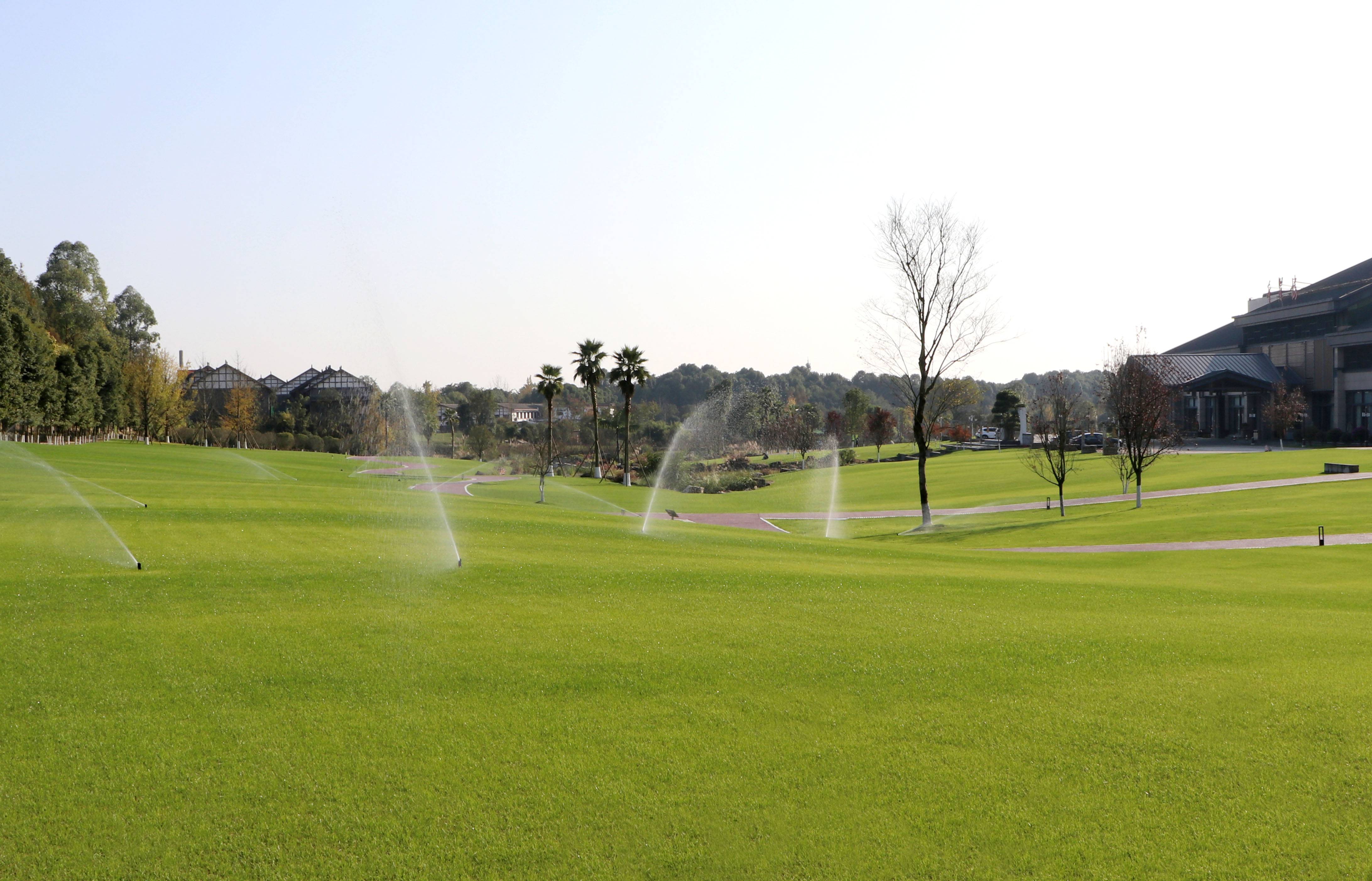

The garden solenoid valve is widely used in various garden irrigation systems, including parks, gardens, golf courses, campuses, urban green belts, etc. Whether it is the irrigation of large areas of lawns or the precise irrigation of different plant areas such as flower beds and shrubs, efficient and water-saving irrigation control can be achieved by reasonably arranging the solenoid valves.
