RainIrri 1/2" Internal Thread ABS Pop Up Sprinkler Body for Garden Lawn Irrigation Management System

 RainIrri 1/2" Internal Thread  ABS Pop Up Sprinkler Body for  Garden Lawn Irrigation Management System

The housing of the Rain IrrI pop-up sprinkler bodys Series has many features. Here is a detailed introduction:



Material

Engineering Plastic: ABS engineering plastic is commonly used. This material has good sturdiness, corrosion resistance, and impact resistance. It is light in weight, relatively low in cost, and can be molded into various complex shapes to meet the structural design requirements of the sprinkler heads.

Stainless Steel: Stainless steel is used in some key components, such as the filter screen, spring, and screws. It has high strength, corrosion resistance, wear resistance, and oxidation resistance, which can extend the service life of the sprinkler head.

Structural Design

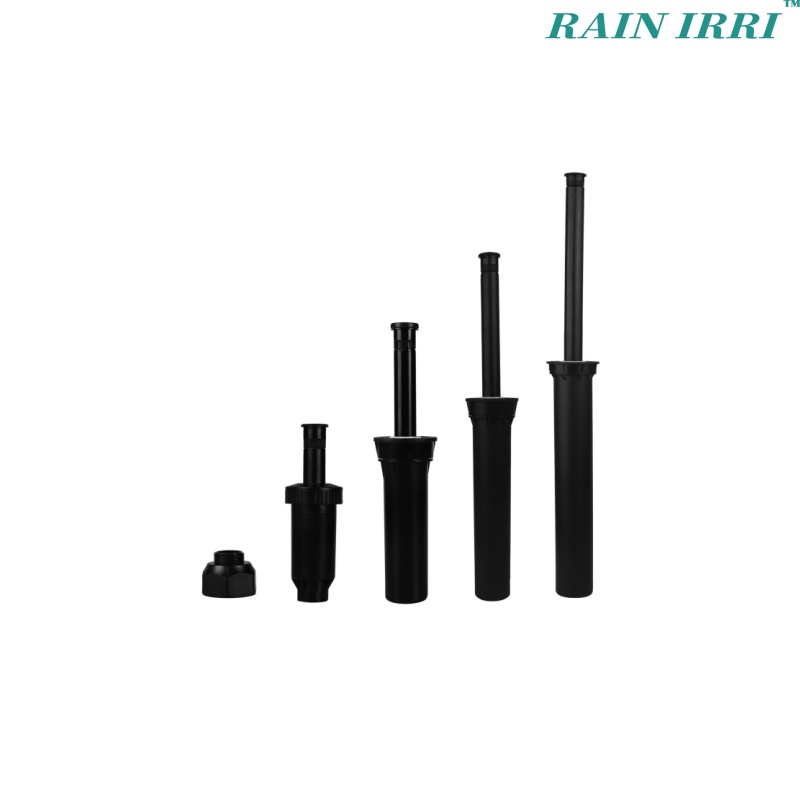

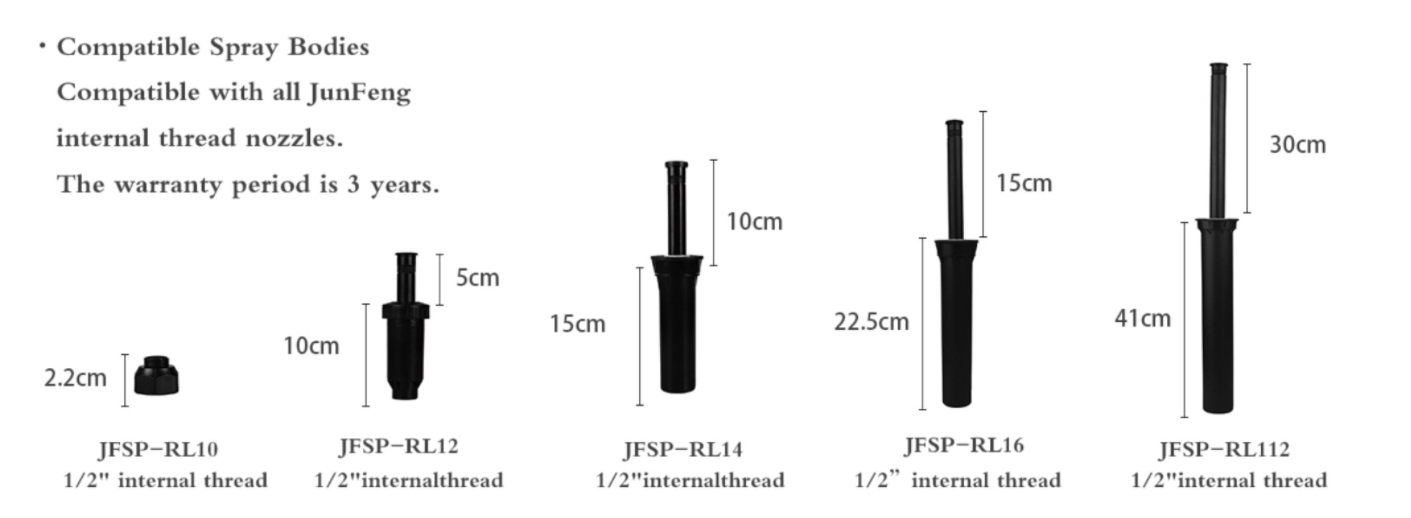

• Rising Column: There are 5 rising height options, suitable for plants of different heights. It has a unique self-cleaning function to ensure smooth rising and falling under any soil conditions. It can extend above the ground when spraying water and retract below the ground when not spraying water, effectively protecting the sprinkler head and maintaining the tidiness of the lawn or ground.

• Inlet: The models   adopt a 1/2” internal thread side inlet design. Compared with the bottom inlet, it can reduce the amount of excavated earthwork and make the installation more convenient.

• Internal Structure: It has a unique pressure-activated multi-functional sealing ring, which is integrally die-cast, with high strength and strong sealing performance. The high-strength stainless steel spring provides reliable power and support for the rising and sealing of the sprinkler head. The filter screen is packed together with the nozzle, making the installation convenient and better preventing the nozzle from being blocked.

Functional Features

• Angle Adjustment Function: The angle adjustment range sprinkler heads is from 45° to 270°, and there are also 3 full-circle models available for selection. Users can quickly adjust the angle and throw distance by hand according to different irrigation needs without using tools.

• Anti-blocking Function: The filter screen under the nozzle is packed together with the nozzle, which can effectively filter impurities in the water, prevent the nozzle from being blocked, and ensure the normal spraying function of the sprinkler head.

• Convenient Maintenance Function: The entire inner core of the sprinkler head can be unscrewed from the top, which is convenient for cleaning and maintenance, reducing the maintenance cost and difficulty.

• Anti-drainage and Pressure Regulation Function:  equipped with an anti-drainage valve, and the anti-drainage height can reach up to 2.4m, which can be used for the lawn and flower beds at the lower part of sloping ground or areas with large elevation changes in the plot. Tequipped with a pressure regulator. When the pressure is too high, the sprinkler head can be adjusted to the optimal working pressure of 2.1bar.

Appearance Design

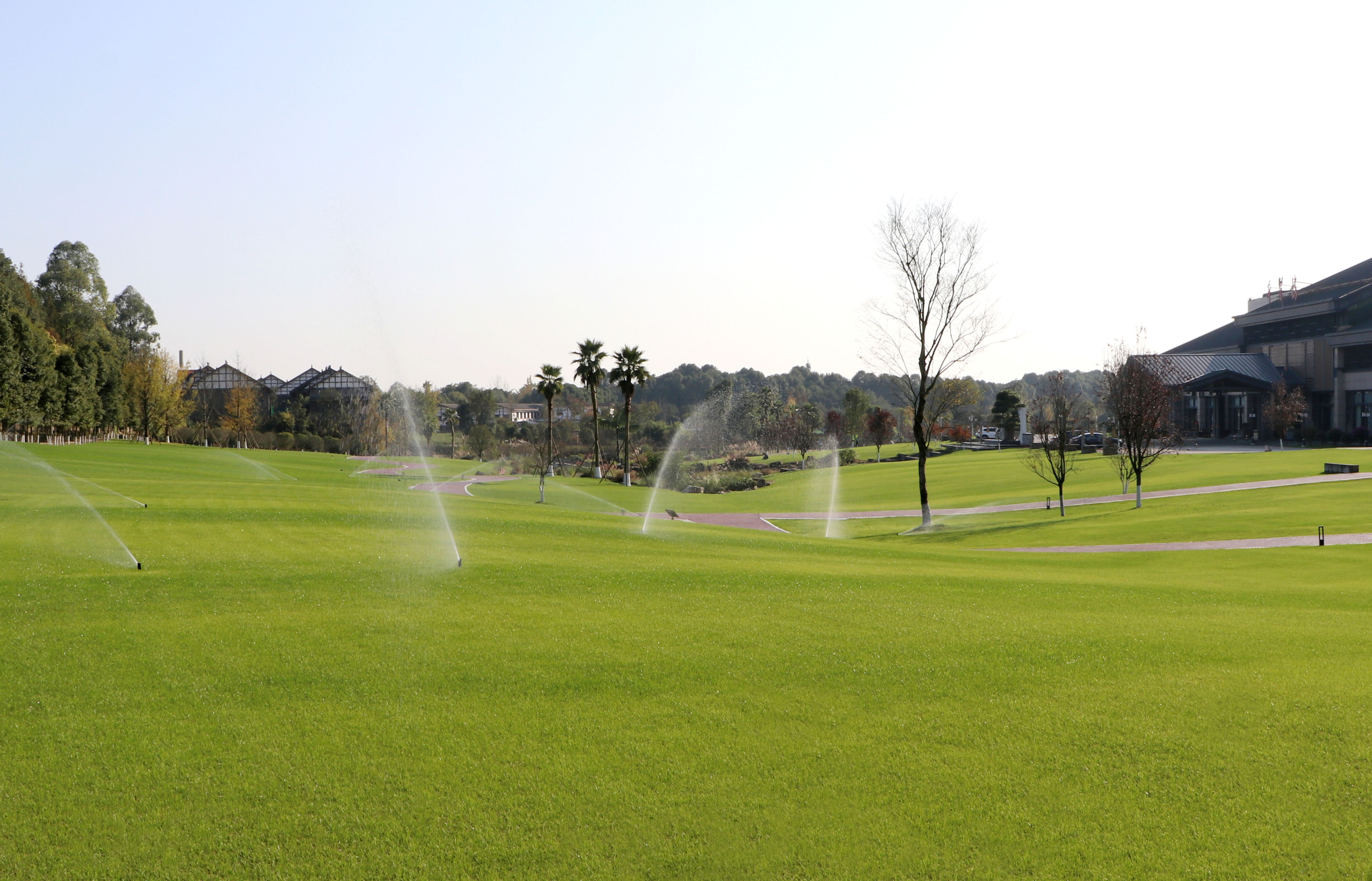

In conclusion, the pop up rotor sprinkleris a an essential tool for irrigation of green belt, lawn, football field . More Professional  Question about irrigation ,welcome inquiry . We are Facility Agriculture, Internet  Agriclulture engineering company for more then  10 years experience.
