Product Description
Rainirri Adjustable Pop Up Garden Scattering Rectangle Sprinklers for Landscape Architecture Irrigaiton System
The rectangular scattering sprinkler is a type of irrigation sprinkler commonly used in specific scenarios. The following is a brief introduction to it:
It usually has a unique rectangular sprinkler body design, which helps it achieve a specific spraying pattern and coverage area. The material of the sprinkler is generally corrosion-resistant and wear-resistant engineering plastics or metal alloys to ensure long-term stable use under different environmental conditions.
There is a precise water flow distribution device and nozzle structure inside the sprinkler, which can evenly disperse the water flow entering the sprinkler into a rectangular spraying area, achieving relatively accurate irrigation.
Based on the pressure-driven principle, when the water flow with a certain pressure enters the sprinkler, the water flow passes through the specially designed guiding and shunting devices in the flow channels inside the sprinkler, adjusting the direction and speed of the water flow.
Then, the water flow is ejected from the rectangular nozzle at a certain angle and speed, forming a rectangular scattered water curtain that evenly covers the area to be irrigated. By adjusting parameters such as the pressure of the sprinkler, the size and shape of the nozzle, etc., the spraying range, spraying intensity, and uniformity of the rectangular scattering sprinkler can be controlled.

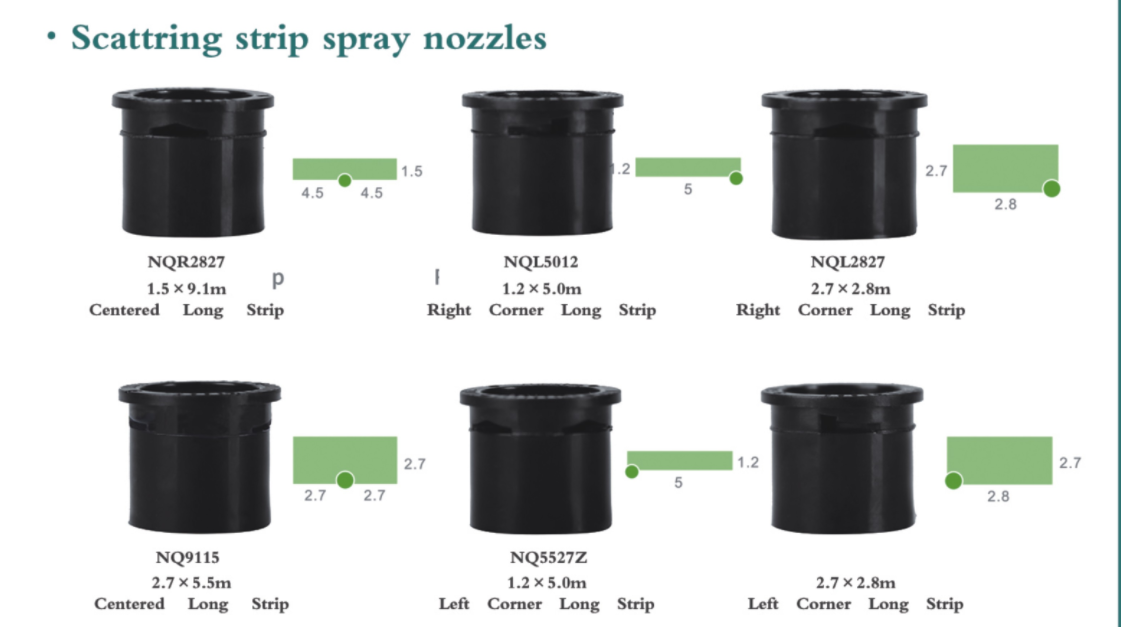

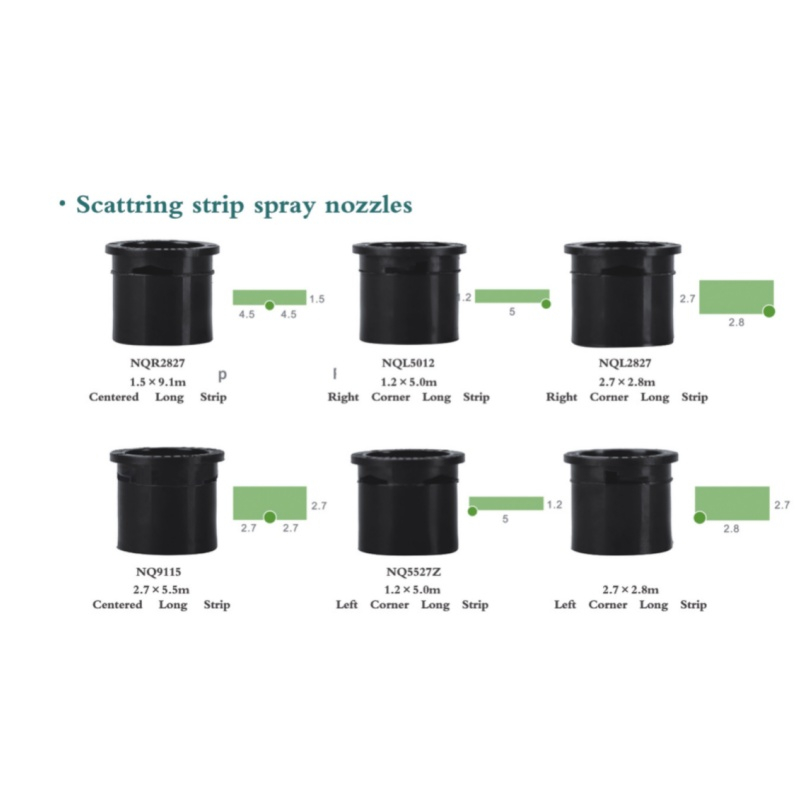

Scattering Rectangle Sprinkler Nozzles
| Pressure | 1.5 Bar | 2 Bar | 2.5 Bar | 3.0 Bar | 3.5 Bar | |||||
| Parameter Model | Flow(m³/hr) | Range(m) | Flow(m /hr) | Range(m) | Flow(m³/hr) | Range(m) | Flow(m³/hr) | Range(m) | Flow(m³hr) | Range(m) |
| NQ9115 | 0.23 | 1.2x8.5 | 0.25 | 1.3x8.5 | 0.28 | 1.5x9.1 | 0.30 | 1.5×9.3 | 0.32 | 1.5×9.3 |
| NQ5527 | 0.35 | 2.7x4.7 | 0.38 | 2.7x5.2 | 0.41 | 2.7x5.5 | 0.44 | 2.7x5.7 | 0.47 | 2.7x5.7 |
| NQR5012 | 0.09 | 1.0x3.9 | 0.11 | 1.2x4.5 | 0.12 | 1.2x5.0 | 0.13 | 1.2x5.2 | 0.14 | 1.2x5.2 |
| NQL5012 | 0.09 | 1.0x3.9 | 0.11 | 1.2x4.5 | 0.12 | 1.2x5.0 | 0.13 | 1.2x5.2 | 0.14 | 1.2x5.2 |
| NQR2827 | 0.18 | 2.5x2.3 | 0.22 | 2.7x2.5 | 0.25 | 2.7x2.8 | 0.27 | 2.7x2.9 | 0.29 | 2.7x2.9 |
| NQL2827 | 0.18 | 2.5x2.3 | 0.22 | 2.7x2.5 | 0.25 | 2.7x2.8 | 0.27 | 2.7x2.9 | 0.29 | 2.7x2.9 Pressure1.5 Bar2 Bar2.5 Bar3.0 Bar3.5 Bar ParameterModelFlow(m³/hr)Range(m)Flow(m /hr)Range(m)Flow(m³/hr)Range(m)Flow(m³/hr)Range(m)Flow(m³hr)Range(m) 0.23 1.2x8.50.25 1.3x8.50.28 1.5x9.10.30 1.5×9.30.32 1.5×9.3NQ9115 NQ55270.35 2.7x4.70.38 2.7x5.20.41 2.7x5.50.44 2.7x5.70.47 2.7x5.7NQR50120.09 1.0x3.90.11 1.2x4.50.12 1.2x5.00.13 1.2x5.20.14 1.2x5.2NQL50120.09 1.0x3.90.11 1.2x4.50.12 1.2x5.00.13 1.2x5.20.14 1.2x5.2NQR28270.18 2.5x2.30.22 2.7x2.50.25 2.7x2.80.27 2.7x2.90.29 2.7x2.9NQL28270.18 2.5x2.30.22 2.7x2.50.25 2.7x2.80.27 2.7x2.90.29 2.7x2.9 |

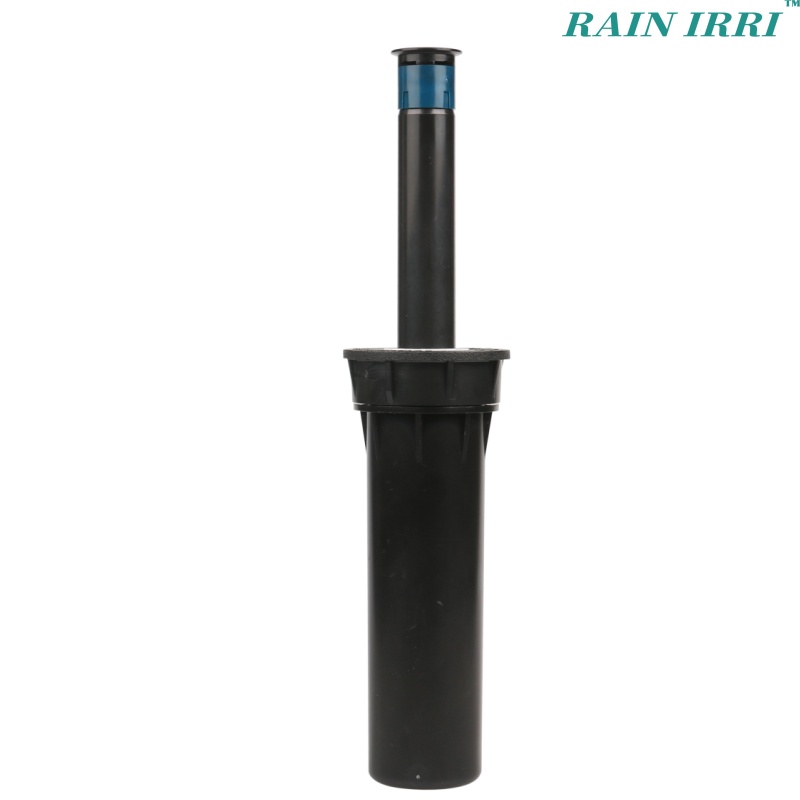

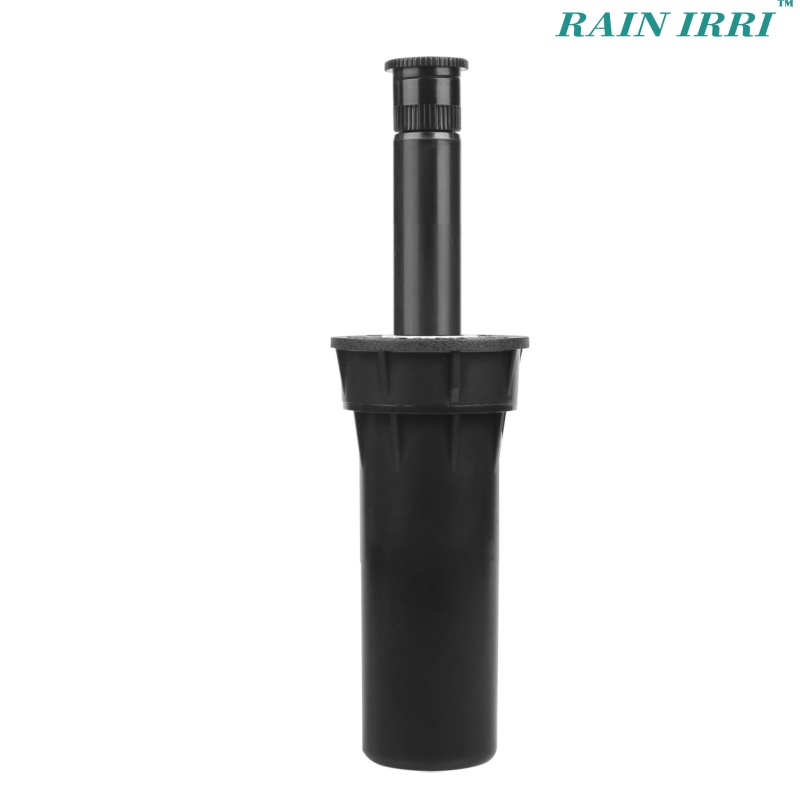

Suitable Pop up Sprinkler Body
| Working Specification | |
Inlet diameter | 1/2"Internal thread |
FLOW | 0.1-1.3 m³/h |
RANGE | 2.5-5.0METER |
Recommended work pressure: | 1.8-4bar |
performance The altitude of the product POP UP: | 0/5cm/10cm/15cM/30CM |
performance The altitude of the product base: | 4.5CM/10CM/15CM/22.5CM/41CM |
Precise Irrigation: It can form a rectangular spraying area, which matches some rectangular or regularly shaped irrigation areas, such as rectangular flower beds, nurseries, vegetable planting areas, etc., to achieve precise irrigation and avoid wasting water resources in areas that do not require irrigation.
Good Uniformity: Through the reasonable design of the internal structure of the sprinkler and the water flow distribution method, the sprayed water can achieve high uniformity within the rectangular area, ensuring that the plants in the irrigation area receive uniform water supply, which is beneficial to the growth and development of the plants.
Strong Adaptability: Some rectangular scattering sprinklers can, according to different irrigation needs, change the spraying range and intensity by replacing different nozzles or adjusting the settings of the sprinkler, adapting to rectangular irrigation areas of different sizes and shapes, as well as the water requirements of different plants.
Agricultural Planting: In large-scale agricultural planting, for rectangular farmland, vegetable fields, etc., rectangular scattering sprinklers can be arranged along the ridges or planting rows to achieve efficient and uniform irrigation, which helps to increase the yield and quality of crops.
Landscape Gardening: In landscape gardening design, for rectangular flower beds, flower borders, hedges and other areas, rectangular scattering sprinklers can accurately spray water onto the plants that need irrigation, while avoiding the water from spraying onto the surrounding walkways or other areas that do not require irrigation, maintaining the tidiness and beauty of the landscape.
Greenhouses: Inside greenhouses, rectangular scattering sprinklers can be reasonably installed according to the shape and layout of the planting beds, providing precise irrigation for the plants in the greenhouse, which helps to control the humidity and temperature inside the greenhouse and create an environment suitable for plant growth.
Installation and Maintenance
Installation: When installing, the spacing of the sprinklers needs to be determined according to the plant type and soil characteristics. Generally, the coverage radius is between 3-6 meters. It is necessary to ensure that the sprinklers are installed horizontally to avoid uneven spraying caused by installation tilt.
Maintenance: Regularly clean the impurities in the nozzles to prevent blockage. Check the tightness of the sprinklers and see if there is any water leakage. In the non-irrigation season, it is recommended to carry out drainage and anti-freezing treatment on the sprinklers to extend the service life of the sprinklers.
