The Art of Precision Control in High-End Landscape Irrigation

Views: 0 Author: Site Editor Publish Time: 2025-06-04 Origin: jf-irrigation.com

Technical White Paper on Pop-Up Rotor Sprinkler: The Art of Precision Control in High-End Landscape Irrigation
——Engineering-Grade Solutions for Luxury Hotels, Municipal Parks, and Deluxe Villas

I. Technical Evolution of Pop-Up Sprinklers: From Basic Irrigation to Hydraulic Sculpture

When the "Supertrees" at Singapore's Gardens by the Bay activate their irrigation system at dawn, hundreds of customized pop-up sprinkler heads execute atomized spraying with millimeter-level precision. The core secret lies in the three-stage hydraulic control module—marking the upgrade of modern irrigation systems from basic functional devices to landscape hydraulics apparatuses.

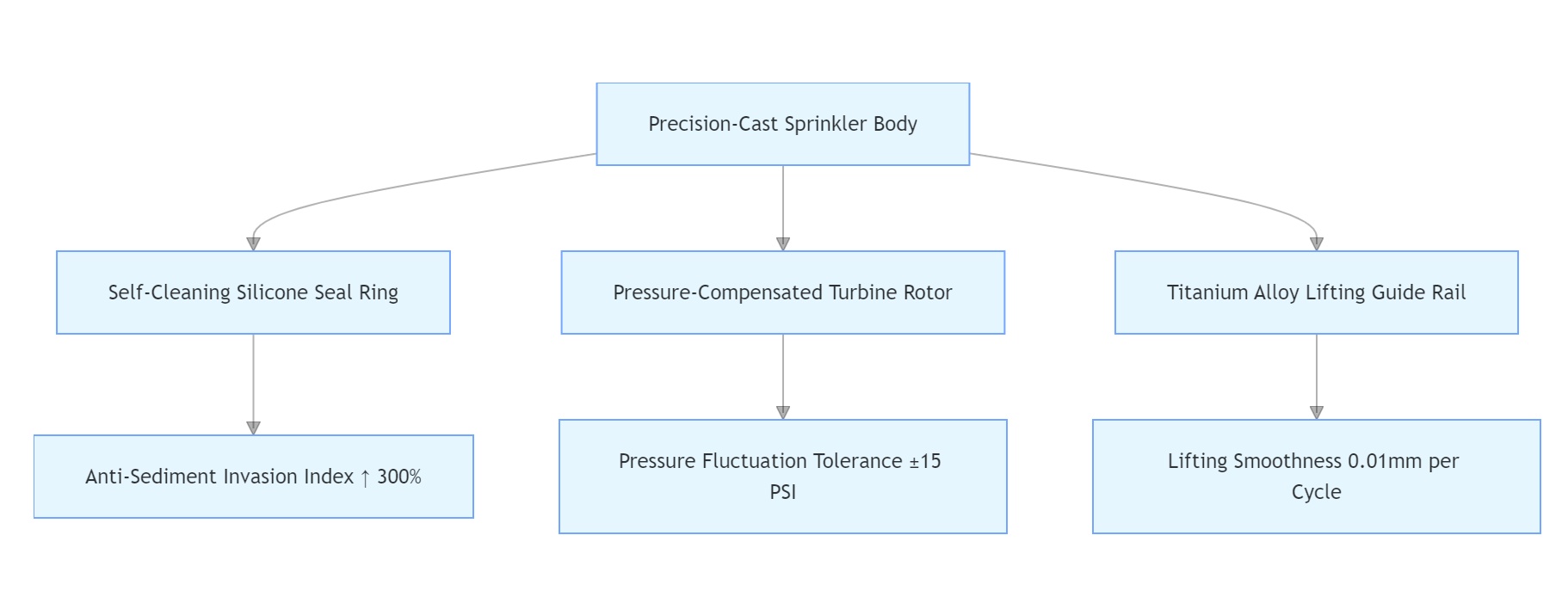

Industry Pain Points and Solutions:

6月4日插图_副本

Traditional Challenges:

Sprinkler pop-up jamming (due to sediment intrusion)
Spray range drift (caused by pressure fluctuations)
Landscape disruption (abrupt protrusions)

II. The Fluid Dynamics Revolution of Rotor Sprinklers

1. Breakthroughs in Core Parameters

Parameter	Traditional Sprinkler (2010)	New-Generation PRS Sprinkler (2024)	Technical Breakthroughs
Range Accuracy	±15%	±3.2%	Turbine-gear dual-stage reduction mechanism
Start-Stop Lag	1.8 seconds	0.4 seconds	Magnetorheological fluid damping control
Operating Pressure Range	30-60 PSI	15-100 PSI	Patented pressure compensation diaphragm technology
Lift Cycle Life	50,000 cycles	500,000 cycles	Ceramic-polytetrafluoroethylene composite guide rail
Data Source: Irrigation Association 2023 Annual Pressure Compensation Equipment Test Report

2. Three Dimensions of Rotor Sprinkler Adjustment Technology

Precision Range Control: 0.5m incremental adjustment via Torx T20 screw
Stepless Angle Positioning: 0-360° arbitrary locking with ≤0.5° error (patented ratchet-ball braking system)
Dynamic Flow Matching: Flow fluctuation controlled within ±0.3GPM at 40PSI pressure

III. Design Specifications for Engineering-Grade Pop-Up Rotor Sprinkler Systems

1. Military-Grade Material System

Component	Material Standard	Environmental Adaptability
Sprinkler Housing	Glass fiber-reinforced nylon 66	UV resistance for 2,000 hours
Lift Shaft	316L stainless steel + PTFE coating	Salt spray resistance for 3,000 hours
Rotor Gearbox	Powder metallurgy copper-based alloy	Operation from -40℃ to 80℃
Sealing System	EPDM rubber + graphene modification	Hydrolysis resistance grade Class 1A

2. Hydraulic Performance Optimization Pathways

Pressure Zoning Design: Using Pressure Regulating Stem (PRS) technology for independent pressure stabilization in each zone
Flow Channel Topology Optimization: CFD-simulated flow channel design reduces turbulence intensity by 42% (validated by ANSYS Fluent)
Atomization Efficiency Control:η=QtotalQeff=1−e−0.22⋅D0.7P1.3
(η: Effective water use rate; P: Pressure in kPa; D: Water droplet diameter in mm)

IV. Extreme Environment Application Cases

Case 1: Atlantis Hotel, Palm Jumeirah, Dubai

Challenge: Daily 45℃ high temperature + sand-laden sea breeze erosion
Solutions:

Sprinklers: ceramic bearings + desert camouflage housing
Installation: Deep-customized 12-inch pop-up height (standard max. 8 inches)
Outcome: Irrigation efficiency increased to 92%, maintenance cycle extended to 5 years

Case 2: Tromsø Northern Lights Park, Norway

Challenge: -35℃ extreme cold + freeze-thaw cycle damage
Innovative Designs:

Thermodynamic self-emptying valve: Triggers emptying via water crystallization expansion energy
Carbon nanotube heating film: Active anti-freeze system with only 3W/head power consumption
Result: Fault-free operation at -40℃

VI. Sustainability Certification and Economic Model

Certification Systems

Certification	Requirement Standard	Compliance Solutions
LEED v4.1	40% reduction in outdoor water use	PRS technology + ET controller
ISO 14046	Water footprint < 0.8m³/m²/year	Pressure compensation + rainwater recycling

Economic Return Model

Initial investment: $12,000
Annual water savings: $2,800 (5-year payback)
Maintenance cost reduction: 60%

Conclusion: From Irrigation Equipment to Water Ecosystem Regulator

Pop-up rotor sprinkler systems have evolved into microclimate regulation hubs. project demonstrates that intelligent sprinkler systems integrating humidity sensing, atomized cooling, and runoff control can reduce regional ambient temperature by 3℃ while decreasing landscape maintenance labor by 70%.
